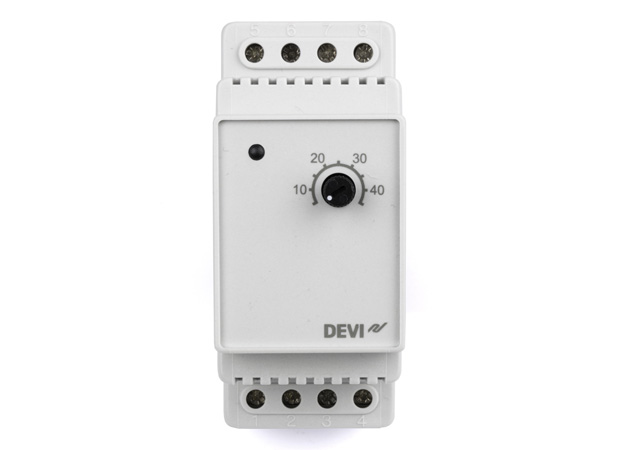

DEVIreg™ 330

DIN Rail Thermostats for Heating, Cooling and Temperature Control Applications

DEVIreg™ 330 is a range of electronic thermostats designed for DIN rail installation in electrical cabinets. The thermostats are used for temperature control in heating and cooling systems and are available in three temperature ranges to suit different applications.
Temperature measurement and control are performed using the supplied wired temperature sensor or a compatible indoor or outdoor air sensor. Installation must be carried out through an all-pole disconnection switch.
The thermostat incorporates a relay with both normally open (NO) and normally closed (NC) contacts. The output contacts are voltage-free and can be used in control systems with voltages up to 250 V.
LED indication provides visual status information for standby and heating operation.

DEVIreg™ 330 (-10 °C to +10 °C)

This version is designed for temperature control in lower temperature applications, including frost protection systems.
The thermostat is supplied with an outdoor temperature sensor and supports temperature adjustment between -10 °C and +10 °C.

DEVIreg™ 330 (5 °C to 45 °C)

This version is designed for applications requiring temperature control in the range from 5 °C to 45 °C.
Typical applications include:
  • Frost protection
  • Electric floor heating
  • Total heating via floor systems
  • Ground ice and snow melting systems
  • Roof frost protection
  • Pipe tracing
  • Cooling systems
The thermostat supports temperature setback control via an external timer.

DEVIreg™ 330 (60 °C to 160 °C)

This version is designed for temperature maintenance systems operating at higher temperatures.
The thermostat supports temperature adjustment from 60 °C to 160 °C and is supplied with a high-temperature silicone sensor.
Typical applications include:
  • Industrial pipe heating
  • High-temperature pipe tracing
  • Process temperature maintenance

Features

  • DIN rail installation
  • Available in three temperature ranges
  • Wired temperature sensor supplied
  • Support for indoor and outdoor air sensors
  • Voltage-free NO and NC relay contacts
  • Control voltages up to 250 V
  • LED indication for standby and heating operation
  • Temperature setback control via external timer (5 °C to 45 °C version)
  • Heating and cooling control applications
DEVIreg™ 330 DIN Rail Thermostats for Heating, Cooling and Temperature Control Applications

Benefits

  • Selection of temperature ranges according to application requirements
  • DIN rail mounting for installation in electrical cabinets
  • Integration into heating and cooling control systems
  • Support for indoor, outdoor, and pipe-mounted temperature sensing
  • Voltage-free relay contacts for flexible system integration
  • Visual operating status indication through LED display

Specification

Operation voltage

220 - 240 V, 50/60 Hz

Standby power consumption

Max. 0,25 W

Resistive load

Max 16 A (3680 W) @ 230 V

Inductive load

Max. 1 A, cos φ = 0,3

Ambient temperature

-10 °C to +50 °C

Cable specification max

1 x 4 mm2 or 2 x 2,5 mm2

Storage temperature

-20 °C to +65 °C

IP class

20

Protection class

Class II -

Dimensions (H/W/D)

85 x 36 x 58 mm

Weight

83 g

Warranty scope

20 years

Compliance

Standard compliance:• EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat)

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Item no

Product name

Temperature range

Sensor type

Night setback

Hysteresis

marking

140F1072

DEVIregTM 330 (5 - 45 °C)

5 °C to 45 °C

Wire sensor, 3 m,
NTC 15 kOhm at 25 °C

5 °C

± 0,2 °C

D330

140F1070

DEVIregTM 330 (-10 - +10 °C)

-10 °C to +10 °C

Wire sensor, 3 m,
NTC 15 kOhm at 25 °C

–

± 0,2 °C

D330

140F1073

DEVIregTM 330 (60 -160 °C)

60 °C to 160 °C

Wire sensor, silicone,
2,5 m, NTC 16,1 kOhm
at 100 °C

–

± 0,4 °C

D330
