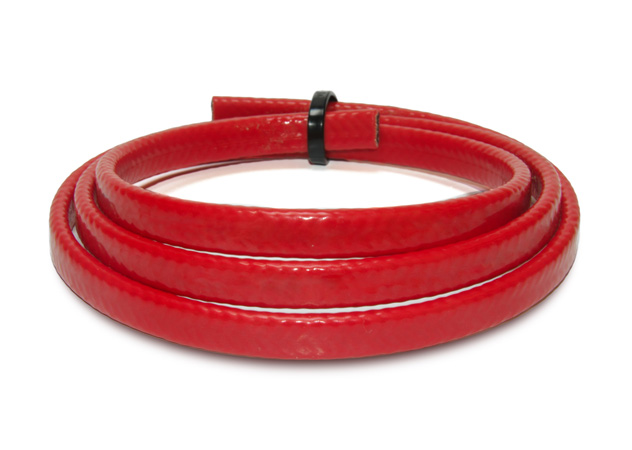

DEVIpipeguard™ 30/60 Industry

DEVIpipeguard™ 30/60 Industry is a self-limiting heating cable designed for pipe frost protection and temperature maintenance in industrial applications.

The cable can maintain process temperatures up to 120°C when energized and withstand temperatures up to 190°C when not energized. It is suitable for applications where steam cleaning of pipes is required.

The heating element, insulation and outer jacket are manufactured from fluoropolymer materials. The fluoropolymer outer jacket is designed for use in environments where exposure to oils, fuels and mechanical abrasion may occur.

A temperature-dependent resistance element positioned between two parallel copper conductors automatically adjusts heat output according to the local pipe temperature. As temperature increases, the cable output decreases. This self-limiting operating principle helps reduce the risk of cable overheating, including in areas where sections of cable overlap.

The parallel conductor design allows the cable to be cut to the required length on site, supporting adaptation to different pipe layouts and installation requirements.

All self-limiting heating cables require over-temperature protection through an appropriate control system. The use of a thermostat is recommended. Output is reduced as temperature increases but does not reach zero.
DEVIpipeguard™ 30/60 Industry is not approved for use in drinking water applications.
DEVIpipeguard™ 30/60 Industry

Benefits

  • Self-limiting heating cable technology
  • Suitable for industrial pipe frost protection
  • Designed for process temperature maintenance up to 120°C
  • Withstands temperatures up to 190°C when unpowered
  • Fluoropolymer insulation and outer jacket
  • Can be cut to the required length on site
  • Suitable for pipe systems subject to steam cleaning
  • Material composition without PVC
  • UV-resistant outer jacket*
  • Parallel conductor design for installation flexibility

Specification

Nominal voltage

230 V AC (max. 254 V AC)

Nominal output (min-max):
DEVIpipeguardTM 30 Industry
DEVIpipeguardTM 60 Industry

30 W/m @ 10 °C (30-39 W/m @ 10 °C)
60 W/m @ 10 °C (54-72 W/m @ 10 °C)

Maximum permissible use temperature

120 °C, powered
190 °C, unpowered

Minimum installation temperature

-5 °C

Minimum switched on temperature

-60 °C

Cable dimensions

10,2 x 4,8 mm

Outer sheath

Red, Fluorpolymer

Minimum braid coverage

70%

Maximum resistance protective braid

18,2 Ω/Km

Bending Ø, min.

50 mm (Ø to the inside of the tape)

IP Class

IPX7

Warranty scope

20 years

Compliance

Standard compliance: • VDE E 0254: 94

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Types: DEVIpipeguardTM 30 Industry



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

140F8500

Drum, 300 m

300 m

1

30 W/m

140F8501

Cut-to-length

1 - 300 m

1, max. 300 m

30 W/m



Types: DEVIpipeguardTM 60 Industry



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

00109027

Drum, 300 m

300 m

1

60 W/m

140F8502

Cut-to-length

1 - 300 m

1, max. 300 m

60 W/m
