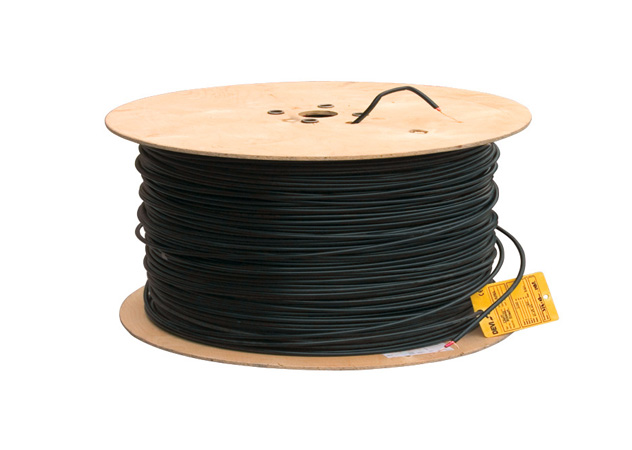

DEVIsnow™ Drum Goods

DEVIsnow™  heating cable on drum is an extremely high-quality, 360° fully screened twin conductor cable with a tough black  PVC outer sheath (UV stable). Its round profile and robust construction ensures a fast, simple and safe installation on roofs, in gutters, down drain pipes and on the ground.

Heating cable must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption.

DEVIsnow™ heating cables should not be in direct contact with bitumen roofs. To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our extended DEVIwarranty™.

DEVIsnow™ can be customized for the specific project, depending on voltage, required output, length of heating cable and length of cold leads.

Note: It is the full responsibility of the installer/designer to use proper cold lead dimensioned for the purpose and assembly sets that establish sufficient mechanical strength, flammability resistance and water tightness - and to design the heating unit with correct output for the specific application to avoid overheating of the cable or building materials.

DEVIsnow™ Drum Goods

Benefits

  • Fast and easy to install
  • Multiple outdoor applications
  • Safe and robust
  • Long life-time
  • Maximum protection
  • UV stable

Specification

Nominal voltage, max

Uo/U = 300/500 V~

Construction

Twin conductor with 360° screening

Output, max

30 W/m

Max. permissible use temperature, powered

60 °C

Max. permissible use temperature, unpowered

90 °C

Cable diameter

7 mm

Deformation strength

1500 N

Pulling strength

450 N

Conductor insulation

FEP

Outer sheath

UV protected PVC

Screen

0,5 mm2 Cu, 100% Alu-foil

Min. installation temperature

-5 °C

Bending Ø, min.

5 cm

IP Class

IPX7

Compliance

Standard compliance: • IEC60800:2009

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

DEVIsnow™ Drum

Item no.

Resistance

84805400

9,36/m

84805403

4,19/m

84805406

2368/m

84805409

1519/m

84805412

1057/m

84805415

0,735/m

84805418

0,567/m

84805421

0,451/m

84805424

0,367/m

84805427

0,257/m

84805430

0,19/m

84805433

0,146/m

84805436

0,115/m

84805439

0,092/m

84805442

0,07/m

84805445

0,055/m

Documents
