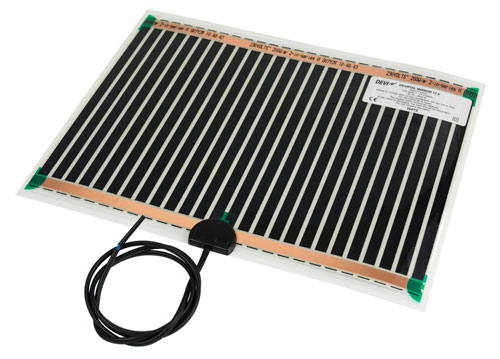

DEVIfoil™ Mirror

An effective system for keeping the mirror completely steam free. Fast and easy installation where the self-adhesive side of the heating foil is placed on the back of the mirror.

Low energy consumption and automatic activation when the light is switched on.

DEVIfoil™ Mirror

Benefits

  • Fast and easy installation
  • Low energy consumption
  • Automatic activation

Specification

Nominal voltage

230 V~

Output

200 W/m2

Max. ambient temperature

80 °C

IP Class

IP 44

Protection class

Class II -

Connection cable length

95 cm

Connection muff

4 x 31 x 39 mm

Compliance

Standard compliance:

EN 60335-1 + EN 60335-2-30

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

Types: DEVIfoilTM Mirror



Item no.

Type

Dimensions

Wattage

62000000

DEVIfoilTM Mirror 17,5

274 x 358 mm

17,5 W

62000001

DEVIfoilTM Mirror 40

410 x 524 mm

40,0 W

62000002

DEVIfoilTM Mirror 70

708 x 524 mm

70,0 W
