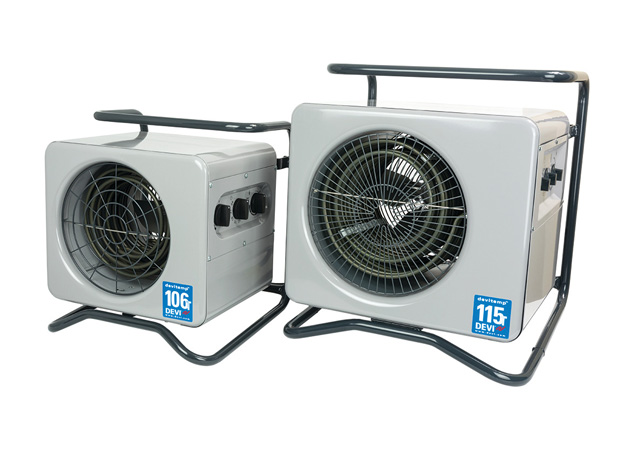

DEVItemp™ Fan Heater
The DEVItemp™ fan heater is a comprehensive portable heating system that offers a temporary yet efficient heating solution. It is designed to withstand harsh conditions such as heat, cold, moisture, and heavy use on construction sites. The built-in thermostat maintains a constant desired temperature while minimizing electricity consumption. The fan heater can be used either as a portable device or permanently installed for long-term use.
Benefits
- Rugged construction
- Corrosion-resistant
- Portable or permanent installation
- Easy regulation, five-step control unit for airflow
- Thermostat to ensure required temperature remains constant
- IP Class 44
Specification
|
Timer thermostat |
On types named “T” up to 24 hours presetting. |
|
Adjustable thermostat |
3 - 6 KW 0 °C to 40 °C. |
|
Safety thermostat |
3 - 6 KW = 110 °C. |
|
IP Class |
IP 44 |
|
Colour |
RAL 7004 |
Warranty scope
Standard compliance:
• IEC60335-2-30
Product variants
Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents
Table
| Item no. | Type | W x H x D [mm] | Volatage | K / W | m³ / h | ∆Т Temp. [°C] | Weight [kg] | dB |
| 69810562 | 303T | 410 x 435 x 420 | 230 V~ | 3 | 400 / 650 | 14 / 19 | 12 | 32 - 35 |
| 69811537 | 106T | 410 x 435 x 420 | 3 × 400 V~ | 6 | 400 / 650 | 21 / 28 | 14,2 | 33 - 42 |
| 69812543 | 109T | 410 x 435 x 420 | 3 x 400 V~ | 9 | 400 / 650 | 36 / 45 | 14,9 | 33 - 42 |
| 69814515 | 121T | 505 x 540 x 510 | 3 x 400 V~ | 21 | 800 / 1400 | 36.5 / 42 | 25,7 | 42 - 52 |
| 19400514 | Wall mounting kitfor DEVItempTM 303T, 103T, 106T, 109T | |||||||
| 19400522 | Wall mounting kit for DEVItempTM 115S, 115T, 121T | |||||||
