DEVIreg™ 130/132

Electronic Thermostats for Electric Floor Heating and Temperature Control

DEVIreg™ 130/132 is a range of electronic 16 A thermostats designed for direct wall installation. The thermostats are operated using a single control dial for temperature adjustment and switch-off function.
The product range includes a wired floor temperature sensor supplied with the thermostat. LED indication shows operating status, with separate indications for standby and heating operation. Using floor and/or room sensors, they maintain comfortable temperatures, improve energy efficiency, and are ideal for bathrooms, kitchens, living spaces, and renovation projects.

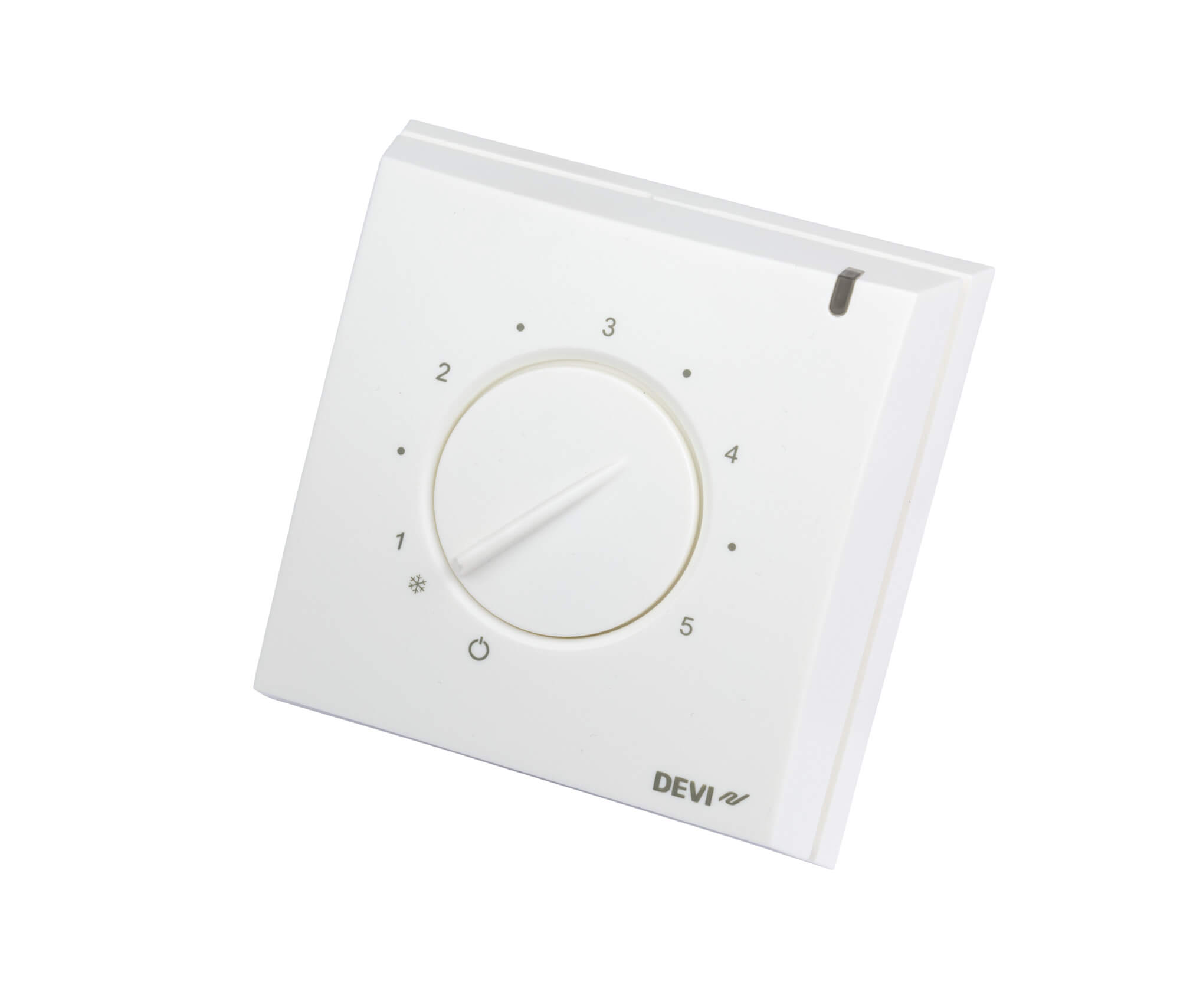

DEVIreg™ 130/132 Electronic Thermostats for Electric Floor Heating and Temperature Control

Benefits

  • Precise electric floor heating control
  • Compatible with floor and room sensing
  • Improved indoor comfort
  • Energy-efficient temperature regulation
  • Simple manual operation
  • LED heating and standby indication
  • Frost protection function
  • Trusted DEVI reliability and performance

Specification

Operation voltage

220 - 240 V, 50/60 Hz

Standby power consumption

Max. 5 W

Resistive load

Max 16 A (3680 W) @ 230 V

Inductive load

Max. 1 A, cos φ = 0,3

Hysteresis

± 0,2 °C

Ambient temperature

-10 °C to +30 °C

Frost protection

5 °C -



Cable specification max

1 x 4 mm2 or 2 x 2,5 mm2

Ball pressure test temperature

75 °C

Pollution degree

2 (domestic use)

Controller type

1 C

Storage temperature

-20 °C to +65 °C

IP class

IP 30

Protection class

Class II -

Dimensions (H/W/D)

82 x 82 x 36 mm

Weight

90 g

Warranty scope

20 years

Compliance

Standard compliance:

• EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat)

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Product name

Temp. range

Sensor type

Marking

DEVIreg™ 130

5-45 °C

Wire sensor, 3 m, NTC 15 kOhm at 25 °C

D130

DEVIreg™ 132

Room: 5-35 °C, max. floor temp.: 20-50 °C (default 35 °C)

Built-in room sensor and wire sensor, 3 m, NTC 15 kOhm at 25 °C

D132
