DEVIreg™ Basic

Programmable Floor Heating Thermostat with Floor Sensor

DEVIreg™ Basic is a programmable floor heating thermostat designed for the control of electric underfloor heating systems. The thermostat complies with the requirements of the EcoDesign Lot 20 regulation and is intended for fixed installation in residential and commercial applications.
Designed with a two-part construction, DEVIreg™ Basic is compatible with a wide range of standard 55 × 55 mm frame systems, providing flexibility for renovation and new-build projects.
The thermostat functions as a thermostat with floor sensor, allowing floor temperature regulation based on the configured settings. A rotary dial enables manual temperature adjustment, while integrated programming functions allow operation according to defined schedules.
Configuration is performed through a guided setup process in the mobile application, supporting commissioning and system adjustment.
The thermostat includes programmable control features, including an optimum start function, which adjusts heating operation to support reaching the programmed temperature at the scheduled time, according to system configuration and installation conditions.

Typical Applications

  • Electric underfloor heating in residential buildings
  • Apartment renovations
  • New-build housing projects
  • Hotels and hospitality environments
  • Offices and commercial buildings

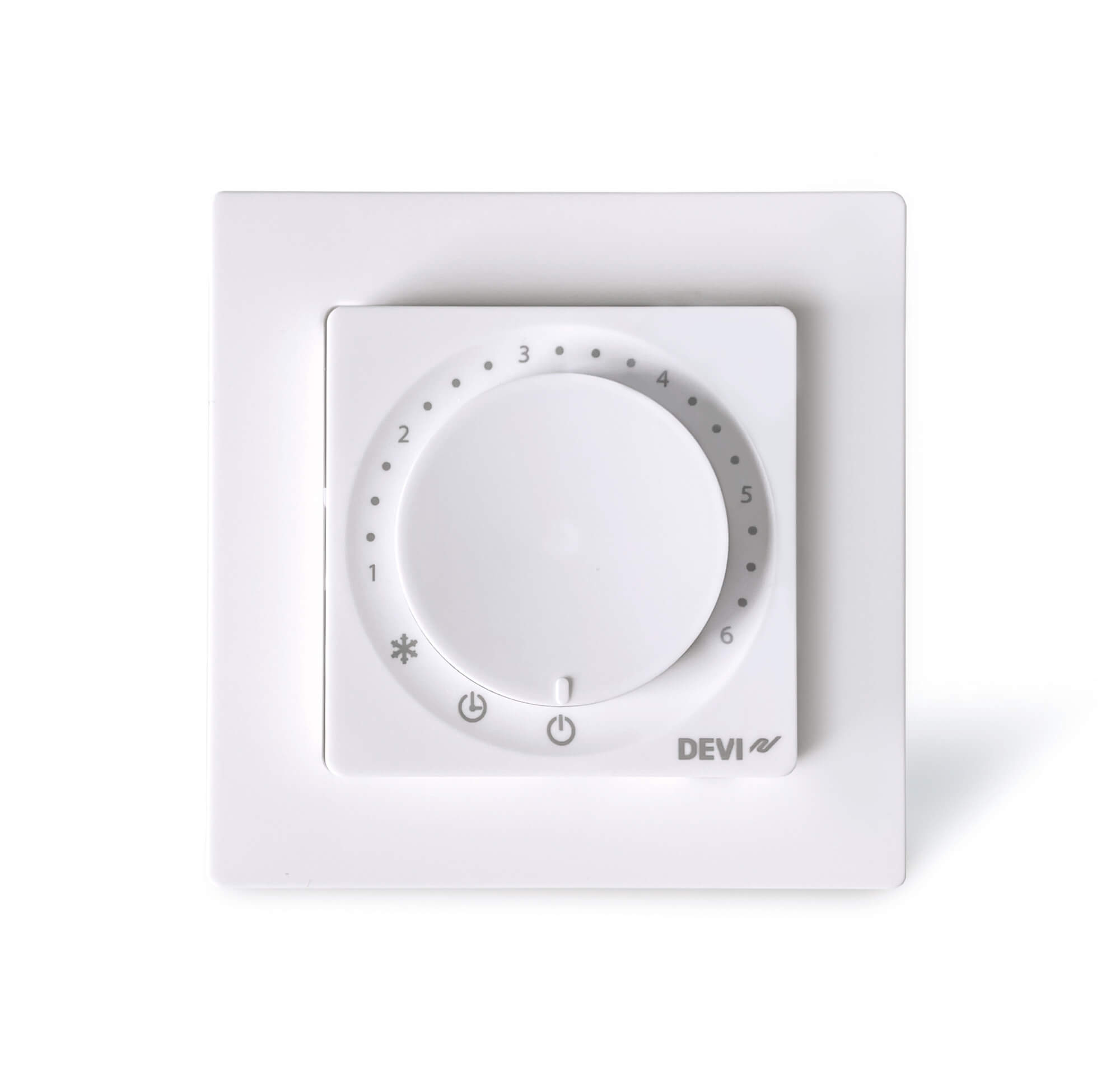

DEVIreg™ Basic thermostat

Benefits

  • Programmable floor heating thermostat for electric underfloor heating systems
  • EcoDesign thermostat compliant with Lot 20 requirements
  • Compatible with floor temperature sensor control
  • Two-part construction compatible with standard 55 × 55 mm frame systems
  • Manual temperature adjustment via rotary dial
  • Mobile app-guided setup and configuration
  • Programmable schedules for temperature control
  • Optimum start function for scheduled heating operation
  • Designed for fixed installation

Specification

Nominal voltage

220 - 240 V, 50/60 Hz

Standby power consumption, max

0,2 W

Relay:
Resistive load
Inductive load

16A / 3680W @ 230V
Cos Φ = 0.3 max. 1A

Compatible sensors

NTC 15 kΩ @ 25 °C, 3 m. (default)

Regulation

PWM - Pulse Width Modulation

Frost protection

4 °C - 14 °C (default 5 °C)

Temperature range

5 °C to 35 °C
(45 °C with break out) (floor)

Cable specification for connectors terminals

Max: 1 x 4 mm2 or 2 x 2.5 mm2

Ball pressure test

75 °C

Pollution degree

2 (domestic use)

Software class

A

Controller type

1 B

Storage temperature and conditions

-25 °C to 60 °C, 90% RH non-condensing

Operating temperatures and conditions

0 °C to 35 °C, 90% RH non-condensing

IP class

21

Protection class

Class II -

Immunity against voltage surges

Over Voltage Category III

Dimensions (H/W/D):

85 mm x 85 mm x 20-24 mm
(in-wall depth: 22mm)

Weight, net

194 g

Warranty scope

20 years

Compliance

Standard compliance: Radio Equipment Directive • LVD 60730-1, -2-7 and -2-9 • EMC EN 301 489 -1 and -17 • RF EN 300328

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Item no

Product name

Type

140F1164

DEVIreg™ Basic Polar White

Ecodesign programmable thermostat
with NTC 15 kΩ @ 25°C, 3 m sensor in box
