DEVIreg™ Multi

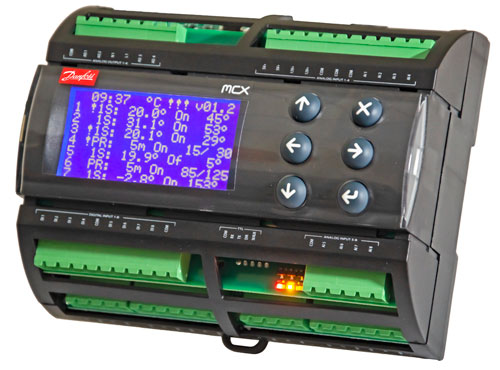

DEVIreg™ Multi is 7 channel electronic programmable controller to be installed on DIN rail. Every channel can be individually set up with three control modes – with temperature sensor, time proportional power regulation without sensor and manually on/off with time limitation. Сhannels inputs can be selected via software between 8 types of temperature sensors including NTC 15 kOhm at 25°C. Modbus RS485 opto-insulated serial interface gives possibility for BMS control. DEVIreg™ Multi has some special functions which can be programmed for every channel: relay status - opened or closed correspondently to ‘Heating On’ mode, channel activation or deactivation, sensor failure alarm, min and max temperatures alarm, cable failure monitoring, relay test, channel on/off, relay cycles calculator, etc.

DEVIreg™ Multi

Benefits

  • 7 independent channels
  • 3 control modes:
  • with temperature sensor
  • time proportional regulation
  • manually on/off
  • Heating or cooling control
  • Compatible with 8 sensors types
  • Accurate temperature control
  • Alarm functions
  • Cable failure monitoring
  • Multilanguage menu
  • Graphic LCD display
  • BMS control
  • Dimensions 8 DIN modules

Specification

Nominal voltage

110/230 V AC, 50–60 Hz

Power consumption, max.

20 V A

Relay resistive (inductive, cos(phi) = 0,6) load:
Total current load limit
C1-NO1, C2-NO2
C5-NO5, C6-NO6
C3-NO3-NC3, C4-NO4-NC4
C7-NO7-NC7, C8-NO8-NC8

32 A
10 (3,5) A (100 000 cycles)
6 (4) A (100 000 cycles)
6 (4) A (100 000 cycles)
6 (4) A (100 000 cycles)

Sensor inputs

Analog inputs AI1-AI8

Sensing unit

Temperature sensors separately selectable via software at
analog inputs AI1-AI7 between:
NTC15k (15 kOhm @ 25 °C)
NTC10k (10 kOhm @ 25 °C)
NTC5k (5 kOhm @ 25 °C)
NTC2k (2 kOhm @ 25 °C)
NTC100 (100 kOhm @ 25 °C)
NTC16k (16,7 kOhm @ 100 °C)
PT1000 (1000 Ohm @ 0 °C)
Ni100 (100 Ohm @ 0 °C)

Sensor failure monitoring

Disconnected or short-circuited sensor

Digital inputs

DI1-DI8, voltage free contacts, on/off inputs

Connection specification

Grouped screws plug-in connectors, pitch 5 mm

Cable specification for connectors terminals

Section cable 0,2-2,5 mm2

Battery back-up time, min.

48 hours

Ball pressure test

125 °C according to IEC 60730-1

Pollution degree

2 (domestic use)

Controller type

1 C

Operating temperatures and conditions

CE: -20...+60 °C / UL: 0...55 °C, 90% RH non-condensing

Storage temperature and conditions

-30...+85 °C, 90% RH non-condensing

IP class

IP40 only on the front cover

Protection class

Class II -

Immunity against voltage surges

Designed for Over Voltage Category II

Dimensions (H/W/D), DIN dimension :

110(122) х 138 х 70 mm, 8 DIN modules

Mounting method

DIN rail, complying with EN 60715

Weight, net

511 g

Menu languages:

2.0 en, bg, cs, da, de, es, et, fi, fr, hr, hu, lt, no, pl, ro, ru, sk, sl, sv, tr, uk

Base controller

Danfoss MCX08M2, item no. 080G0307

Software class

A

Warranty scope

20 years

Compliance

Standard compliance: Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU • EN/IEC 60730-1 + EN/IEC 60730-2-9
