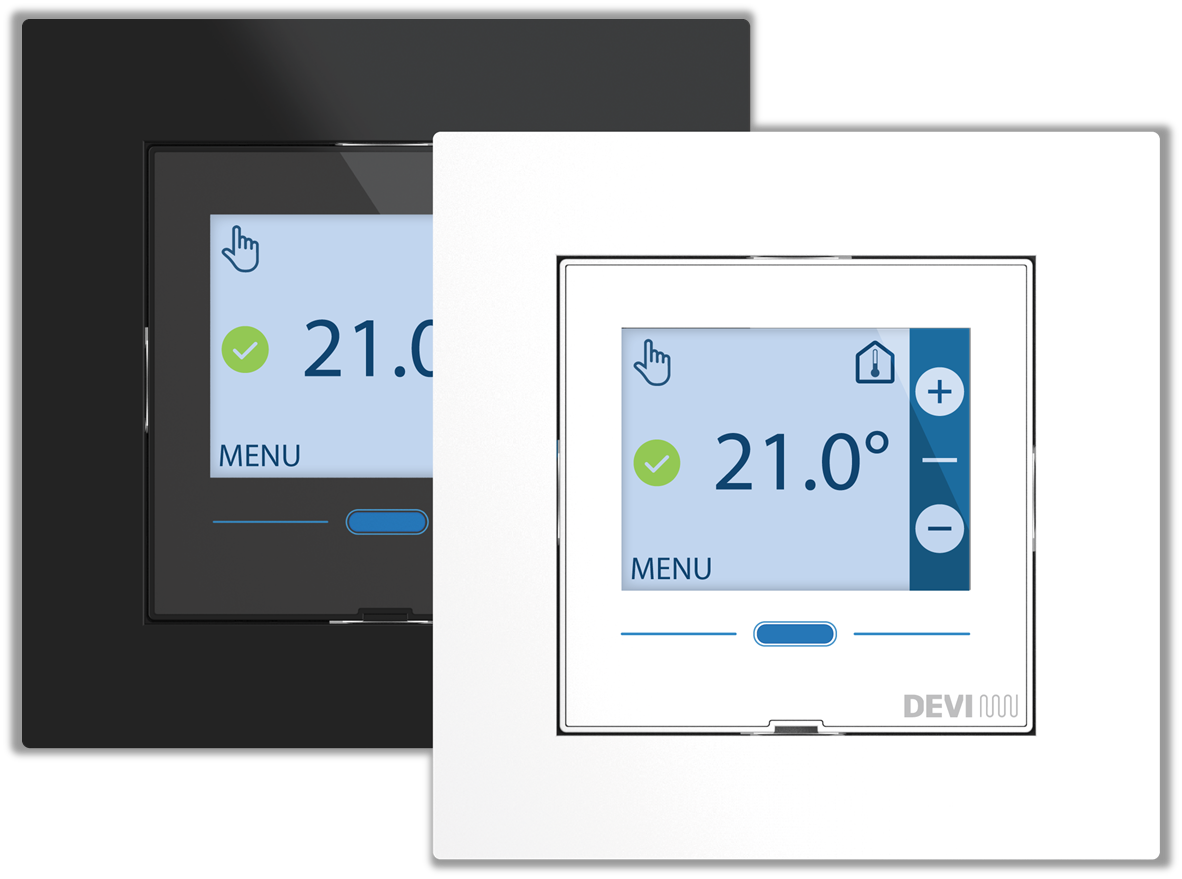

DEVIreg™ Solo

DEVIreg™ Solo is an intuitive, programmable timer thermostat for combined room or floor temperature control, compliant with EcoDesign Lot 20. It is used to control electrical floor heating elements based on the room temperature. The thermostat is designed for fixed installation only. Due to its specially designed two-part construction, it fits a wide range of frames. The thermostat features a color touchscreen display, providing intuitive control.

DEVIreg™ Solo is quick and easy to set up using the Setup Wizard, directly from the screen. It includes energy-saving programs such as PWM regulation, a weekly schedule, and open window detection, along with a wide range of compatible floor sensors, significantly reducing heating costs.

DEVIreg™ Solo

Benefits

  • EcoDesign compliant Lot 20
  • Color touch screen display
  • Different display themes
  • User friendly all-in-one setup
  • Setup Wizard
  • Support for 55x55 like frames
  • Compatible with 6 sensors types
  • Sensor failure monitoring
  • Adaptive PWM control
  • Multilanguage user interface
  • Multiple control modes

Specification

Nominal voltage

220 - 240 V, 50/60 Hz

Standby power consumption, max

1 W

Relay:
Resistive load
Inductive load

16A / 3680W @ 230V
Cos Φ = 0.3 max. 1A

Display type

2“ LCD color touch screen display, 240x320 resolution

Compatible sensors

NTC 15 kΩ @ 25 °C, 3 m. (default),
NTC 6.8 kΩ @ 25 °C,
NTC 10 kΩ @ 25 °C,
NTC 12 kΩ @ 25 °C,
NTC 33 kΩ @ 25 °C,
NTC 47 kΩ @ 25 °C

Regulation

PWM - Pulse Width Modulation

Frost protection

4 °C - 9 °C (default 5 °C)

Temperature range

5 °C to 35 °C (room)
5 °C to 35 °C (floor)

Cable specification for connectors terminals

Max: 1 x 4 mm² or 2 x 2.5 mm²

Ball pressure test

75 °C

Pollution degree

2 (domestic use)

Software class

A

Controller type

1 B

Storage temperature and conditions

-25 °C to 60 °C, 90% RH non-condensing

Operating temperatures and conditions

0 °C to 35 °C, 90% RH non-condensing

IP class

21

Protection class

Class II -

Immunity against voltage surges

Over Voltage Category III

Battery type or Name

Coin battery Manganese Lithium

Battery back-up time, min.

60 days

Dimensions (H/W/D):

85 mm x 85 mm x 20-24 mm
(in-wall depth: 22mm)

Weight, net

110 g

Warranty scope

20 years

Compliance

Standard compliance:
• EN/IEC 60730-1 (general)
• EN/IEC 60730-2-9 (thermostat)
• EN/IEC 60730-2-7 (timers and time switchers)

Compliance

BIM Model

Take your projects to the next level with DEVI’s ready-made BIM models.

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Item no

Product name

Type
140F1172

DEVIreg™ Solo (White)

EcoDesign room thermostat
with NTC 15 kΩ @ 25°C, 3 m sensor in box
140F1173

DEVIreg™ Solo (Black)



Accessories

Description

Type
140F1091

Sensor 3 m, 15 kOhm, Santoprene

Wire sensor, 2x0,75 mm², NTC 15 kOhm at 25 °C, Ø5x18 mm,
black Santoprene (TPV), IP 67
140F1098

Temperature Sensor 10 m NTC 15k Santoprene
19121445

Sensor cable 40 m, 15 kOhm, Santoprene
