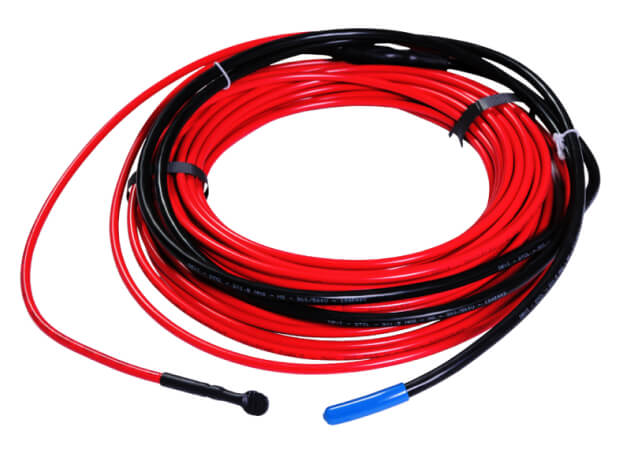

DEVIflex™ 6T

DEVIflex™ is an extremely high-quality, 360° fully screened twin conductor cable with a tough outer sheath (non-UV stable). Its round profile and robust construction ensures a fast, simple and safe installation in multiple indoor floor constructions and pipe tracing applications. Heating cable must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption. Due to the low specific output (W/m) this product can be successfully used for NZEB (Nearly Zero Energy Building) house applications. The cold lead is an installation cable with solid conductors ensuring fast installation. A clearly visible connection avoids accidentally installing the heated cable in the wall. To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our full floor extended DEVIwarranty™. DEVIflex™ cables have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.
DEVIflex™ 6T

Benefits

  • Fast and easy to install
  • Multiple application options
  • Safe and robust
  • Long life-time
  • Maximum protection

Specification

Nominal voltage

230 V~

Construction

Round, twin conductor with 360° screen, one cold lead

Output

10 W/m @ 230 V~

Max. permissible use temperature, powered

75 °C

Max. permissible use temperature, unpowered

90 °C

Cable dimensions

Ø 6,9 mm

Deformation strength

1500 N

Pulling strength

400 N

Conductor insulation

XLPE

Outer sheath

PVC, red

Screen

100% coverage; alu-foil; 0,5 mm² tinned copper drain wire

Cold lead

2,3 m DTCL, 3G (1,5 or 2,5)mm²

Min. installation temperature

-5 °C

Bending Ø, min.

5 cm

IP Class

IPX7

Warranty scope

20 years

Compliance

Standard compliance: • IEC60800:2009

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Item no.

Cable length

Output @ 230 V~

Resistance

Cold lead

140F1200

30 m

180 W

293,4 O

3 x 1,5 mm2

140F1201

40 m

250 W

211,6 O

3 x 1,5 mm2

140F1202

50 m

310 W

170,0 O

3 x 1,5 mm2

140F1203

60 m

345 W

152,4 O

3 x 1,5 mm2

140F1204

70 m

415 W

128,1 O

3 x 1,5 mm2

140F1205

80 m

500 W

105,6 O

3 x 1,5 mm2

140F1206

90 m

540 W

98,1 O

3 x 1,5 mm2

140F1207

100 m

635 W

83,6 O

3 x 1,5 mm2

140F1208

115 m

720 W

74,0 O

3 x 1,5 mm2

140F1209

129 m

770 W

68,9 O

3 x 1,5 mm2

140F1210

140 m

870 W

60,8 O

3 x 1,5 mm2

140F1211

160 m

915 W

57,9 O

3 x 1,5 mm2

140F1212

180 m

1095 W

48,2 O

3 x 1,5 mm2

140F1213

190 m

1160 W

45,6 O

3 x 1,5 mm2

140F1214

200 m

1260 W

42,0 O

3 x 1,5 mm2
