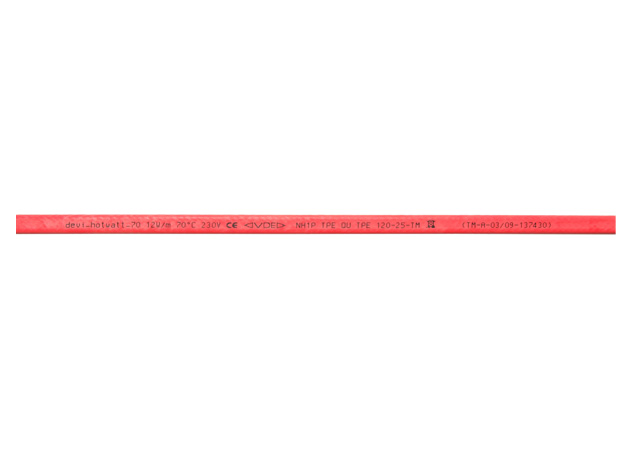

DEVIhotwatt™ 45 (B) / 55 (B) / 70 (B)

The DEVIhotwatt™ is a self-limiting heating cable that is used for temperature maintenance of hot water supply and other fluids that need to maintain a certain temperature.

The self-limiting capability of the cable ensures that the output of the cable increase or decrease according to ambient temperature.

DEVIhotwatt™ ensures hot water in all taps and savings when circulation of the whole pipe system is unnecessary. All self-limiting heating cables must be over-temperature protected by a thermostat, as the output will decrease, but never be zero, and be protected by a RCD with a maximum trip current of 30 mA.

The cable is not approved for use in drinking water. DEVIhotwatt™ cables have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.

DEVIhotwatt™ 45 (B) / 55 (B) / 70 (B)

Benefits

  • Cut to length on site
  • Black version is UV protected
  • PVC free

Specification

Nominal voltage

230 V AC

Nominal output (min-max) :
DEVIhotwattTM 45
DEVIhotwattTM 55
DEVIhotwattTM 70

7 W/m @ 45 °C (6,5-9,5 W/m @ 45 °C)
9 W/m @ 55 °C (8,5-13,0 W/m @ 55 °C)
12 W/m @ 70 °C (11,3-15,2 W/m @ 70 °C)

Outer sheath:
DEVIhotwattTM 45
DEVIhotwattTM 55
DEVIhotwattTM 70

Black, TPE
Green, TPE
Red, TPE

Maximum permissible use temperature

80 °C, powered
100 °C, unpowered

Minimum installation temperature

-5 °C

Cable dimensions

11,8 mm × 5,8 mm

Screen

Tinned copper braid, 1,25 mm2

Minimum braid coverage

70%

Maximum resistance protective braid

18,2 Ω/Km

Bending Ø, min.

50 mm (Ø to the inside of the tape)

IP Class

IPX7

Warranty scope

5 years

Compliance

Standard compliance:

DIN VDE 0254: 1994-06

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Types: DEVIhotwattTM 45 (B)



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
45 °C

98300955

Drum, 300 m

300 m

1

7 W/m

140F8508

Cut-to-length

1 - 300 m

1, max. 300 m

7 W/m


Types: DEVIhotwattTM 55 (B)



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
55 °C

98300958

Drum, 100 m

100 m

1

9 W/m

98300957

Drum, 300 m

300 m

1

9 W/m

140F8509

Cut-to-length

1 - 300 m

1, max. 300 m

9 W/m


Types: DEVIhotwattTM 70 (B)



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
70 °C

140F8507

Drum, 300 m

300 m

1

12 W/m

140F8510

Cut-to-length

1 - 300 m

1, max. 300 m

12 W/m
