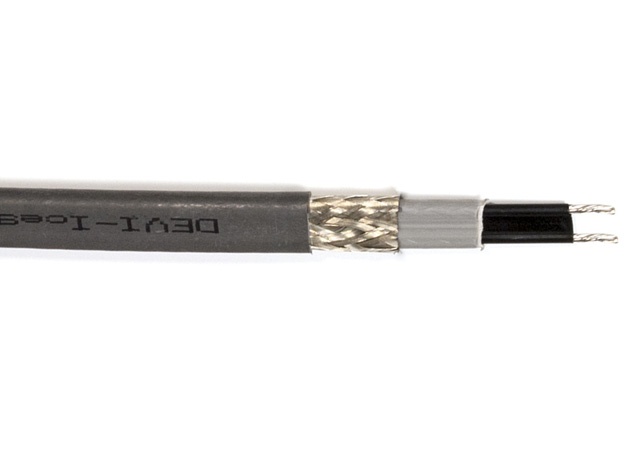

DEVIpipeguard™ (B) 10/25/33

The DEVIpipeguard™ is a self-limiting heating cable that is mainly used for frost protection of pipes. The self-limiting capability of the cable ensures that the output of the cable increase or decrease according to ambient temperature. The cable will maintain its functionality even when shortened.

The outer sheath is highly resistant to harsh environmental conditions and corrosion and it also serves as a protection against mechanical influences. All self-limiting heating cables must be over-temperature protected by a thermostat, as the output will decrease, but never be zero.

The cables are not approved for use in drinking water.

DEVIpipeguard cables have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.

DEVIpipeguard™ (B) 10/25/33

Benefits

  • Cut to length on site
  • PVC free

Specification

Nominal voltage

230 V AC

Nominal output (min-max):
DEVIpipeguardTM 10
DEVIpipeguardTM 25
DEVIpipeguardTM 33

10 W/m @ 10 °C (10-15 W/m @ 10 °C)
25 W/m @ 10 °C (25-32,5 W/m @ 10 °C)
33 W/m @ 10 °C (30-39 W/m @ 10 °C)

Maximum permissible use temperature

65 °C, powered
85 °C, unpowered (1000 hours cumulative)

Minimum installation temperature

-5 °C

Cable dimensions

11,8 mm x 5,8 mm (+/- 0,4 mm)

Outer sheath:
DEVIpipeguardTM 10
DEVIpipeguardTM 25
DEVIpipeguardTM 33

Blue, TPE
Red, TPE
Brown, TPE

Screen

Tinned copper braid, 1,25 mm2

Minimum braid coverage

70%

Maximum resistance protective braid

18,2 Ω/Km

Bending Ø, min.

50 mm (Ø to the inside of the cable)

IP Class

IPX7

Warranty scope

20 years

Compliance

Standard compliance: • DIN VDE 0254: 1994-06

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

98300708

Drum, 100 m

100 m

1

98300700

Drum, 300 m

300 m

1

98300707

Drum, 800 m

800 m

1

140F8504

Cut-to-length

1 - 800 m

1, max. 800 m



Types: DEVIpipeguardTM 25



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

98300761

Drum, 100 m

100 m

1

25 W/m

98300759

Drum, 300 m

300 m

1

25 W/m

140F8503

Drum, 800 m

800 m

1

25 W/m

140F8505

Cut-to-length

1 - 800 m

1, max. 800 m

25 W/m



Types: DEVIpipeguardTM 33



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

98300764

305 m, drum

305 m

1

33 W/m

140F8506

Cut-to-length

1 - 305 m

1, max. 305 m

33 W/m
