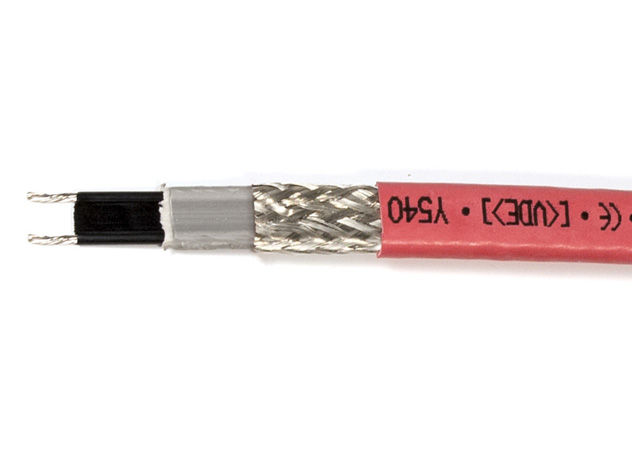

DEVIpipeguard™ LSZH 10/25/33

DEVIpipeguard™ LSZH is a self-limiting, halogen-free heating cable designed for frost protection of pipes. The cable automatically adjusts its heat output according to the ambient temperature. Heat output increases as the temperature decreases and decreases as the temperature rises.

The self-limiting technology allows the cable to maintain its functionality when cut to the required length during installation. The outer sheath is designed for use in environments where protection against corrosion and mechanical impact is required.
For safe operation, self-limiting heating cables must be used with over-temperature protection provided by a thermostat. While the heat output reduces as temperature increases, it does not reach zero.

DEVIpipeguard™ LSZH is not approved for applications involving drinking water pipes.
DEVIpipeguard™ LSZH 10/25/33

Benefits

  • Self-limiting heating cable for pipe frost protection
  • Cut to required length on site
  • Halogen-free construction (LSZH)
  • PVC-free design
  • Suitable for frost protection applications on pipes
  • Outer sheath designed to help protect against corrosion and mechanical impact
  • Compatible with thermostat-based over-temperature protection
  • Halogen free

Specification

Nominal voltage

230 V AC

Nominal output (min-max):
DEVIpipeguardTM 10 LSZH
DEVIpipeguardTM 25 LSZH
DEVIpipeguardTM 33 LSZH

10 W/m @ 10 °C (9,8-14,7 W/m @ 10 °C)
25 W/m @ 10 °C (23,6-32,8 W/m @ 10 °C)
33 W/m @ 10 °C (32,0-39,7 W/m @ 10 °C)

Maximum permissible use temperature

65 °C, powered
85 °C, unpowered

Minimum installation temperature

-5 °C

Cable dimensions

13,6 × 5,8 mm

Outer sheath:
DEVIpipeguardTM 10 LSZH
DEVIpipeguardTM 25 LSZH
DEVIpipeguardTM 33 LSZH

Blue, TPE
Red, TPE
Grey, TPE

Screen

Tinned copper braid, 1,25 mm2

Minimum braid coverage

70%

Maximum resistance protective braid

18,2 Ω/Km

Bending Ø, min.

64 mm (Ø to the inside of the tape)

IP Class

IPX7

Warranty scope

20 years

Compliance

Standard compliance:

EN 62395-1: 2013

EN 60754-1: 2014

EN 60754-2: 2014

EN 61034-2:2005/A1:2013

Compliance

GARAN Label

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Types: DEVIpipeguardTM 10  LSZH



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

98301063

Drum, 100 m

100 m

1

10 W/m

98301064

Drum, 250 m

250 m

1

10 W/m

98301065

Drum, 750 m

750-787,5 m

1

10 W/m

98301071

Cut-to-length

1 - 750 m

1, max. 750 m

10 W/m



Types: DEVIpipeguardTM 25 LSZH



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

98301066

Drum, 100 m

100 m

1

25 W/m

98301067

Drum, 250 m

250 m

1

25 W/m

98301068

Drum, 750 m

750-787,5 m

1

25 W/m

98301072

Cut-to-length

1 - 750 m

1, max. 750 m

25 W/m



Types: DEVIpipeguardTM 33 LSZH



Item no.

Length

Min-max length per drum

Number of length allowed
on drum, max

Nominal output @
10 °C

98301069

Drum, 250 m

250 m

1

33 W/m

98301073

Cut-to-length

1 - 250 m

1, max. 250 m

33 W/m
