DEVIpipeheat™ 10 V3
The DEVIpipeheat™ 10 V3 is a self-limiting heating cable that is used for frost protection of pipes. The self-limiting capability of the cable ensures that the output of the cable increase or decrease according to ambient temperature.
The heating cables can be installed outside water pipes. The product range:
drum cable, cable with cold lead without mains plug and cable with cold lead mains plug.
The product range: drum cable and cable with cold lead mains plug. All self-limiting heating cables must be over-temperature protected by a thermostat, as the output will decrease, but never be zero , and be protected by a RCD with a maximum trip current of 30 mA.
Note 1:
The cable is not approved for installation inside the water pipe and for use in contact with drinking water or water for human consumption, wastewater, etc.
Note 2:
It is the full responsibility of the installer/designer to use proper cold lead dimensioned for the purpose and assembly sets that establish sufficient mechanical strength, flammability resistance and water tightness - and to design the heating unit with correct output for the specific application to avoid overheating of the cable or building materials.

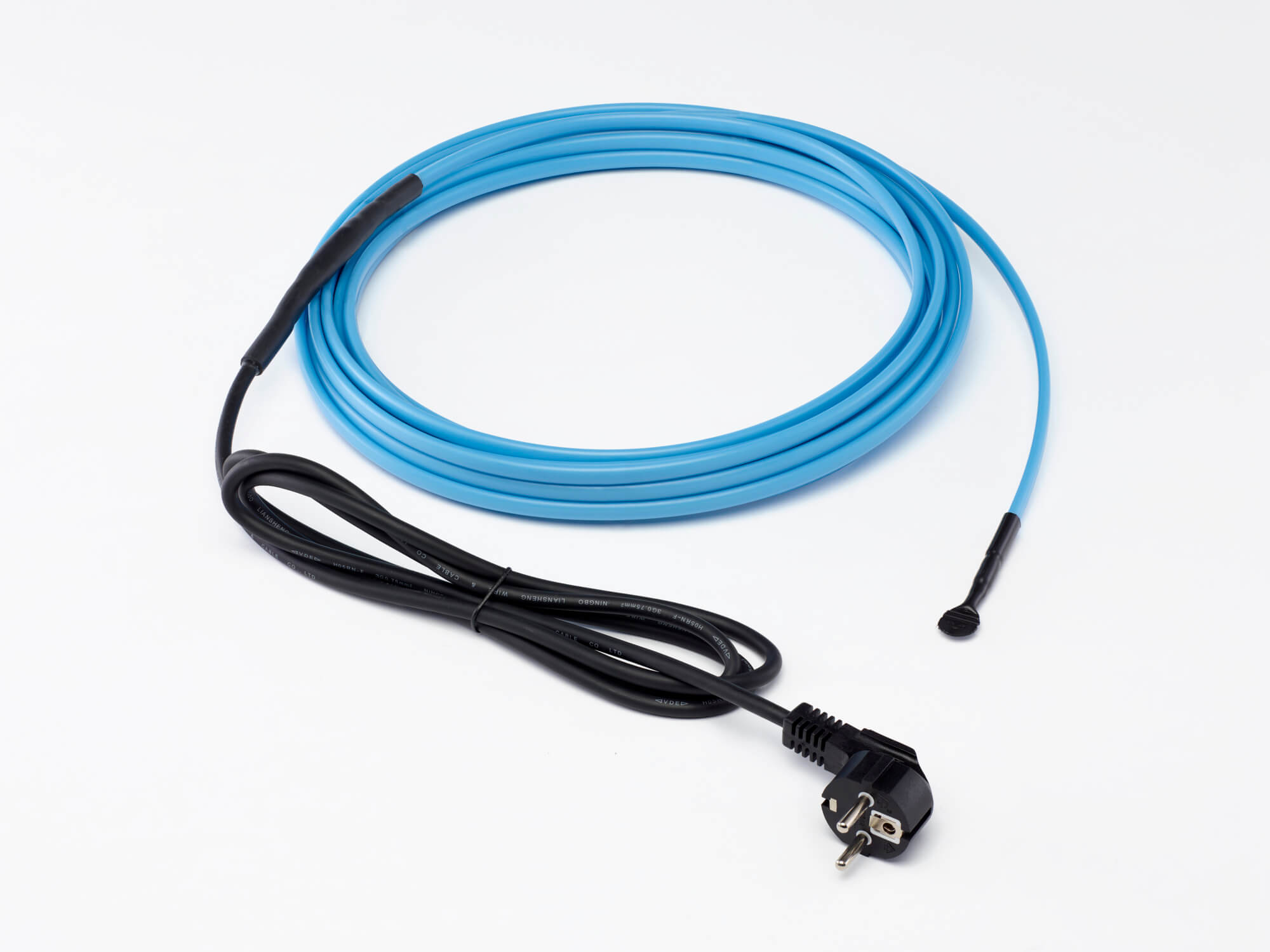

.jpg)
Benefits
- Cut to length on site
- Ready-made lengths
- Small cable size
- Inside and outside pipe installation
- Installation inside drinking water pipes
Specification
|
Nominal voltage |
230 V~ |
|
Nominal output (tolerance) |
10 W/m @ 10 °C (7,5-13,5 W/m @10 °C ) |
|
Max. permissible use temperature, powered |
65 °C |
|
Max. permissible use temperature, unpowered |
65 °C |
|
Minimum installation temperature |
- 5 °C |
|
Max. water temperature |
23 °C |
|
Max. water pressure |
10 bar |
|
Heating cable dimensions |
8,75 × 5,15 mm |
|
Outer sheath |
HDPE + blue PVDF |
|
Minimum Screen Coverage |
100% aluminium foil |
|
Maximum resistance protective braid |
36 Ω/Km |
|
Bending Ø, min. |
50 mm (inside of the cable) |
|
Cold lead with plug |
2 m, 3 х 0,75 mm2 |
|
IP Class for ready made unit |
IP67 |
|
IP Class for heating part and end |
IP68 |
Warranty scope
Compliance
Standard compliance: • IEC 60335-1:2012
Product variants
Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents
Table
|
Types: Ready-made DEVIpipeheatTM 10 V3 with Schuko plug |
|||
|---|---|---|---|
|
Item no. |
Length |
Nominal output @ 10 °C |
Cold lead |
|
2 m |
20 W |
2 m |
|
|
4 m |
40 W |
2 m |
|
|
6 m |
60 W |
2 m |
|
|
8 m |
80 W |
2 m |
|
|
10 m |
100 W |
2 m |
|
|
12 m |
120 W |
2 m |
|
|
14 m |
140 W |
2 m |
|
|
16 m |
160 W |
2 m |
|
|
19 m |
190 W |
2 m |
|
|
22 m |
220 W |
2 m |
|
|
25 m |
250 W |
2 m |
|
|
Types: Ready-made DEVIpipeheatTM 10 V3 with Danish plug |
|||
|
Item no. |
Length |
Nominal output @ 10 °C |
Cold lead |
|
2 m |
20 W |
2 m |
|
|
4 m |
40 W |
2 m |
|
|
6 m |
60 W |
2 m |
|
|
8 m |
80 W |
2 m |
|
|
10 m |
100 W |
2 m |
|
|
12 m |
120 W |
2 m |
|
|
14 m |
140 W |
2 m |
|
|
16 m |
160 W |
2 m |
|
|
19 m |
190 W |
2 m |
|
|
22 m |
220 W |
2 m |
|
|
25 m |
250 W |
2 m |
|
|
Pipe fitting |
|||
|
Item no. |
EAN no. |
Name |
Description |
|
|
|
|
|
|
Item no. |
Length |
Min-max length |
Number of length allowed |
|
Drum, 100 m |
100 m |
1 |
|
|
Drum, 300 m |
300 m |
1 |
|
|
Drum, 1000 m |
1000 m |
1 |
|
|
Cut-to-length |
1 – 1000 m |
1, max. 1000 m |
|
