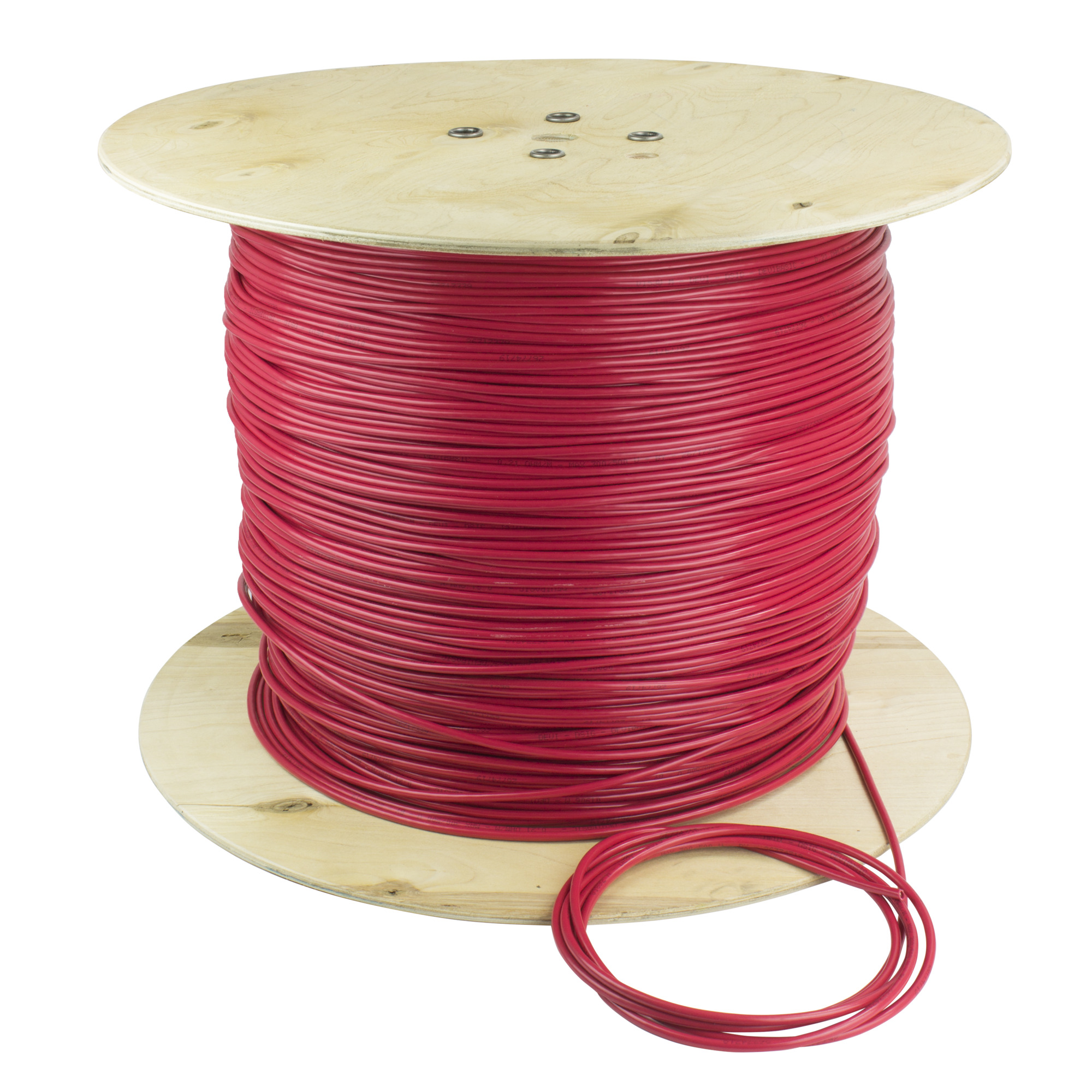

DEVIbasic™ Drum Goods
Benefits
- Round cable design
- Braided screen construction
- Indoor, outdoor, and pipe tracing applications
- Customizable voltage, output, and cable lengths
- Quality-controlled testing for electrical and material parameters
- Available with Environmental Product Declaration (EPD)
Specification
|
Nominal voltage, max |
Uo/U = 300/500 V~ |
|
Construction |
Round, single conductor with screen |
|
Output, max |
20 W/m |
|
Max. permissible use temperature, powered |
60 °C @ 20 W/m |
|
Max. permissible use temperature, unpowered |
90 °C |
|
Cable dimensions |
Ø 5,5 mm |
|
Deformation strength |
600 N |
|
Pulling strength |
120 N |
|
Conductor insulation |
XLPE |
|
Outer sheath |
PVC |
|
Screen |
16 x 0.3 mm Cu (1 mm2) |
|
Min. installation temperature |
-5 °C |
|
Bending Ø, min. |
5 cm |
|
IP Class |
IPX7 |
Warranty scope
Compliance
Standard compliance: IEC60800:1992
GARAN Labels
Product variants
Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents
|
Item no. |
Resistance |
|---|---|
|
0,0134 O/m |
|
|
0,0320 O/m |
|
|
0,0322 O/m |
|
|
0,0500 O/m |
|
|
0,0508 O/m |
|
|
0,0715 O/m |
|
|
0,1000 O/m |
|
|
0,1050 O/m |
|
|
0,1500 O/m |
|
|
0,1530 O/m |
|
|
0,2100 O/m |
|
|
0,2170 O/m |
|
|
0,2670 O/m |
|
|
0,2700 O/m |
|
|
0,3190 O/m |
|
|
0,3400 O/m |
|
|
0,4100 O/m |
|
|
0,4880 O/m |
|
|
0,5000 O/m |
|
|
0,6500 O/m |
|
|
0,6660 O/m |
|
|
0,9000 O/m |
|
|
0,9340 O/m |
|
|
1,1500 O/m |
|
|
1,2000 O/m |
|
|
1,6000 O/m |
|
|
1,7000 O/m |
|
|
2,5000 O/m |
|
|
2,5800 O/m |
|
|
3,8000 O/m |
|
|
3,9000 O/m |
|
|
5,0100 O/m |
|
|
5,9000 O/m |
|
|
7,8200 O/m |
|
|
12,9000 O/m |
|
|
34,1000 O/m |
