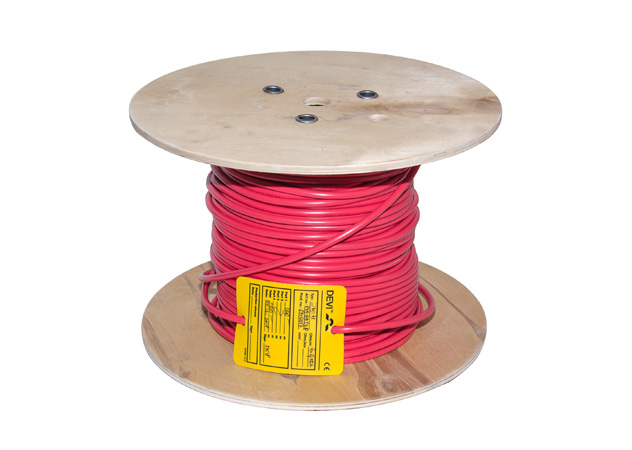

DEVImulti™ PVC

DEVImulti™ PVC is a high-quality, 4-conductor cable with an outer sheath made of PVC and specially designed for frost protection of long pipes. Additionally cable is used in multiple outdoor ground, frost protection, etc., applications.

Heating cable must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption.

The cable is constructed of 4 identical conductors. The conductors can be connected in different ways (parallel and/or serial), meaning that the same cable can provide up to 11 different outputs, depending on the connection made. DEVImulti™ PVC is very flexible and therefore perfectly suited for external installation on pipes, it can be supplied in 3 versions with different resistance values.

The cables are not approved for use in contact with water for human consumption.

DEVImulti™ can be customized for the specific project, depending on voltage, required output, length of heating cable and length of cold leads.

DEVImulti™ PVC

Benefits

  • Easy to install
  • Various Ohmic output
  • Safe and robust
  • Long life-time

Specification

Operation voltage, max.

Uo/U = 300/500 V~

Construction

4-conductor, round

Max. permissible use temperature, powered

70 °C

Max. permissible use temperature, unpowered

90 °C

Cable dimensions, max.

Ø 8 mm

Deformation strength, min.

600 N

Pulling strength, min

120 N

Conductor insulation

FEP

Filler sheath

PVC

Outer sheath:
DEVImultiTM PVC

PVC, red

Screen

1 mm2 (16 x 0,286 mm)

Min. installation temperature

0 °C

Bending Ø, min.

6 x cable diameter

IP Class

IPX7

Compliance

Standard compliance:

IEC 60800:1992

EN 50581:2012

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Item no.

Resistance

Conductor Ø

Order length

89999140

4 x 2,5 Ohm/m (Сonstantan wire)

0,96 mm

1000-1200 m
(+/- 2%)

89999142

4 x 0,220 Ohm/m (Brass wire)

0,771 mm

89999144

4 x 0,027 Ohm/m (Copper wire)

1,02 mm
