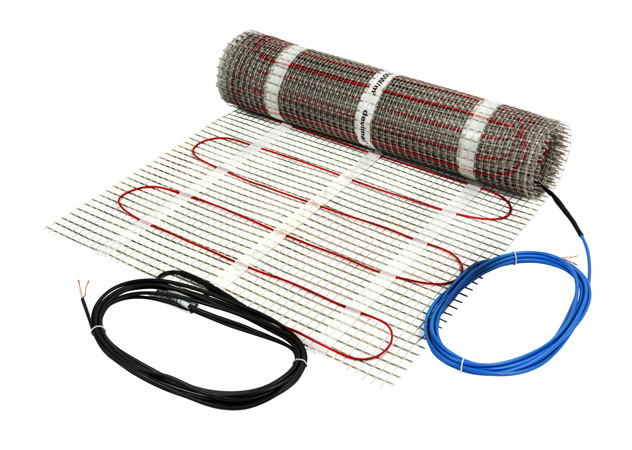

DEVIheat™ 150S & Mirror 150S

DEVIheat™ is an high-quality, braided screen, self-adhesive all-in-one mat with FEP insulated conductors and a red PVDF outer sheath (non UV stable). The round prole, very low height (only 2.5 mm) and robust construction ensures a fast, simple and safe installation perfect for renovating existing oors.

Heating mat must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption.

DEVIheat™ Mirror 150S heating mat is used for keeping the bathroom mirror mist free by mounting the heating mat in the adhesive behind the mirror.

The two cold leads have clearly visible connections to avoid accidentally installing the heated cable in the wall. To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our full oor extended DEVIwarranty™.

DEVIheat™ mats have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.

DEVIheat™ 150S & Mirror 150S

Benefits

  • Fast and easy to install
  • Self-adhesive mesh
  • Very low height - only 2.5 mm
  • Long life-time

Specification

Nominal voltage

230 V~

Construction

Round, single conductor with screen, two cold leads

Output

150 W/m2 @ 230 V~

Max. permissible use temperature, powered

110 °C

Max. permissible use temperature, unpowered

120 °C

Cable thickness

2.5 mm

Deformation strength

600 N

Pulling strength

120 N

Conductor insulation

FEP

Outer sheath

PVDF

Screen

10 x CU threads

Cold lead

2 x 3 m DSWB, 1 x 1,0 mm2, with screen

Min. installation temperature

-5 °C

Bending Ø, min.

5 cm

IP Class

IPX7

Set with flexpipe

Flexpipe, inner ø6,7 mm, outer ø10 mm, 2,5 m, Black

Compliance

Standard compliance:

• IEC 60335-1: 2012 (with amendments)

• IEC 60335-2-96: 2002 (with amendments)

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Types DEVIheatTM Mirror 150S



Item no.

Heated area

Dimensions (W x L)

Output @ 230V~

Resistance

Cold lead

83000301

0,35 m2

0,5 x 0,7 m

50 W

1010 O

1 x 1,0 mm2

83000300

0,48 m2

0,6 x 0,8 m

75 W

686 O

1 x 1,0 mm2




Types: set DEVIheatTM 150S + Flexpipe



Item no.

Heated area

Dimensions (W x L)

Output @ 230V~

Resistance

Cold lead

140F0328

0,5 m2

0,5 x 1 m

75 W

705 O

1 x 1,0 mm2

140F0329

1,0 m2

0,5 x 2 m

150 W

353 O

1 x 1,0 mm2

140F0330

1,5 m2

0,5 x 3 m

225 W

235 O

1 x 1,0 mm2

140F0331

2,0 m2

0,5 x 4 m

300 W

176 O

1 x 1,0 mm2

140F0332

2,5 m2

0,5 x 5 m

375 W

141 O

1 x 1,0 mm2

140F0333

3,0 m2

0,5 x 6 m

450 W

118 O

1 x 1,0 mm2

140F0334

3,5 m2

0,5 x 7 m

525 W

101 O

1 x 1,0 mm2

140F0335

4,0 m2

0,5 x 8 m

600 W

88 O

1 x 1,0 mm2

140F0336

5,0 m2

0,5 x 10 m

750 W

74 O

1 x 1,0 mm2

140F0338

6,0 m2

0,5 x 12 m

900 W

59 O

1 x 1,0 mm2

140F0339

7,0 m2

0,5 x 14 m

1050 W

50 O

1 x 1,0 mm2

140F0340

8,0 m2

0,5 x 16 m

1200 W

44 O

1 x 1,0 mm2

140F0337

9,0 m2

0,5 x 18 m

1350 W

39 O

1 x 1,0 mm2

140F0341

10,0 m2

0,5 x 20 m

1500 W

35 O

1 x 1,0 mm2
