DTCE 175T

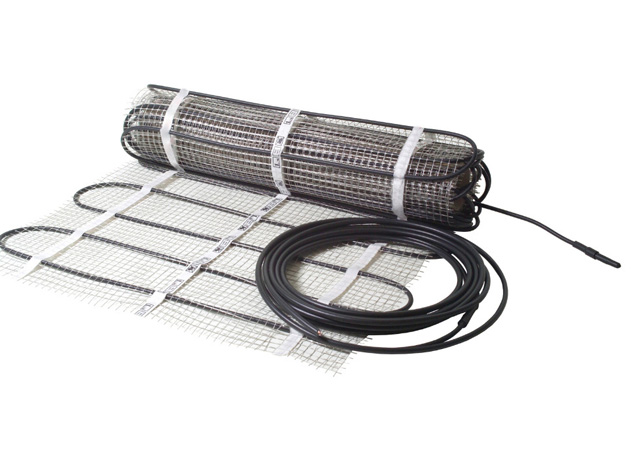

DTCE 175T is a 360° fully screened twin conductor heating mat designed for indoor floor heating applications where the heating cable is embedded in concrete. The cable features a round profile and a UV-stable outer sheath. Its construction supports straightforward installation in concrete floor structures.

The heating mat is installed on insulation and covered with a minimum of 50 mm of concrete. It must be used with an appropriate thermostat to help prevent overheating and support controlled energy use.

The cold lead incorporates solid conductors and a clearly visible connection point, contributing to efficient installation. To support product reliability, each cable undergoes testing for Ohmic resistance, high voltage performance, and material conformity during production.

DTCE 175T is covered by DEVIwarranty™, subject to the applicable warranty terms and conditions.
Note: DTCE heating mats are not approved for roof installations because the Flexing tape is not UV-stable.
The DTCE cable range is supported by an Environmental Product Declaration (EPD). An EPD provides verified information about the environmental impacts of a product across its life cycle stages.
DTCE 100T

Benefits

  • Supports efficient installation
  • Robust cable construction
  • Tested during production for quality control
  • Suitable for indoor concrete floor heating applications
  • UV-stable outer sheath for approved applications

Specification

Nominal voltage

230 V~

Construction

Round, twin conductor with 360° screening, one cold lead

Output

175 W/m2 @ 230 V~

Max. permissible use temperature, powered

70 °C

Max. permissible use temperature, unpowered

90 °C

Cable thickness

7 mm

Deformation strength

1500 N

Pulling strength

450 N

Conductor insulation

FEP

Outer sheath

UV protected PVC

Screen

0,5 mm2 Cu, 100% Alu-foil

Cold lead

6 m DTCL, 3G 1,5mm2

Min. installation temperature

-5 °C

Bending Ø, min.

5 cm

IP Class

IPX7

Warranty scope

20 years

Compliance

Standard compliance: • IEC60800:2009

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Types: set DTCE 175T



Item no.

Heated area

Dimensions (W x L)

Output @ 230V~

Resistance

Cold lead

83901942

1,1 m2

0,75 x 1,5 m

195 W

271,3 Ω

3 x 1,5 mm2

83901945

1,6 m2

0,75 x 2,1 m

265 W

199,6 Ω

3 x 1,5 mm2

83901948

3,0 m2

0,75 x 4 m

540 W

98,6 Ω

3 x 1,5 mm2

83901949

3,8 m2

0,75 x 5,1 m

680 W

77,8 Ω

3 x 1,5 mm2

83901951

5,1 m2

0,75 x 6,75 m

890 W

59,4 Ω

3 x 1,5 mm2

83901954

7,1 m2

0,75 x 9,45 m

1230 W

43,0 Ω

3 x 1,5 mm2

83901957

8,8 m2

0,75 x 11,7 m

1550 W

34,1 Ω

3 x 1,5 mm2

83901960

12,5 m2

0,75 x 16,6 m

2165 W

24,4 Ω

3 x 1,5 mm2

83901963

15,6 m2

0,75 x 20,8 m

2750 W

19,2 Ω

3 x 1,5 mm2
