DEVIsnow™ 300T - 230 V & 400 V

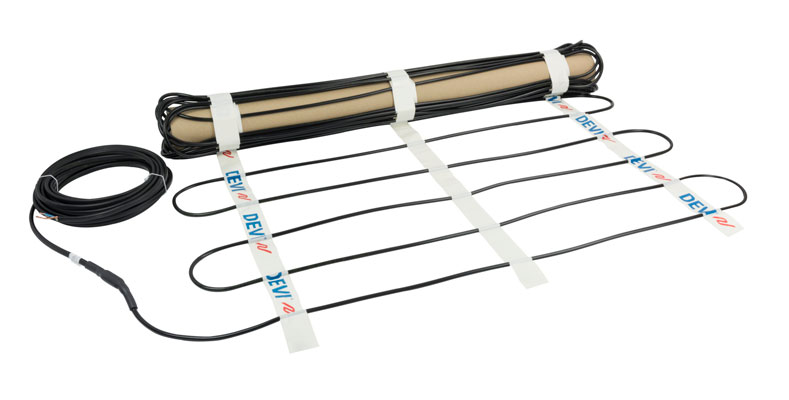

DEVIsnow™ is an extremely high-quality, 360° fully screened twin conductor heating mat with a tough outer sheath (UV-stable). Its round profile and robust construction ensures a fast, simple and safe installation on the ground.

Heating mat must be used together with an appropriate thermostat to secure against overheating and reduce energy consumption.

DEVIsnow™ heating mats should not be in direct contact with bitumen roofs. The cold lead  has solid conductors ensuring fast installation with a clearly visible connection.

To ensure a long life-time, all cables are minutely inspected including tests for Ohmic  resistance, high voltage and material controls to ensure the quality. This means that we  are proud to supply our extended DEVIwarranty™.

Note.

DEVIsnow™ heating mat is not approved for installation on roof because the fixing tape is not UV-stable.

DEVIsnow™ mats have an EPD declaration, which is a document used to transparently communicate the quantified environmental impacts of a product over its life cycle stages.

DEVIsnow™ 300T - 230 V & 400 V

Benefits

  • Fast and easy to install
  • Multiple outdoor applications
  • Safe and robust
  • Long life-time
  • Maximum protection
  • UV stable

Specification

Nominal voltage

230 and 400 V~

Construction

Round, twin conductor with 360° screening, one cold lead

Output

300 W/m2

Max. permissible use temperature, powered

60 °C

Max. permissible use temperature, unpowered

90 °C

Cable thickness

7 mm

Deformation strength

1500 N

Pulling strength

450 N

Conductor insulation

FEP

Outer sheath

PVC

Screen

100% coverage; alu-foil; 0,5 mm2 tinned copper drain wire

Cold lead

10 m or 30 m DTCL, 3G (1,5 or 2,5)mm2

Min. installation temperature

-5 °C

Bending Ø, min.

5 cm

IP Class

IPX7

Warranty scope

20 years

Compliance

Standard compliance:  • IEC60800:2009

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Types: set DEVIsnowTM 300T - 230 V with cold lead 10 m

Item no.

Heated area

Dimensions (W x L)

Output @ 230V~

Resistance

Cold lead

83902030

1,0 m2

0,5 x 2,0 m

288 W

184 O

3 x 1,5 mm2

83902031

2,0 m2

0,5 x 4,0 m

613 W

86 O

3 x 1,5 mm2

83902032

4,0 m2

0,5 x 8,0 m

1225 W

43 O

3 x 1,5 mm2

83902033

4,9 m2

0,5 x 9,8 m

1440 W

38 O

3 x 1,5 mm2

83902034

6,1 m2

0,5 x 12,2 m

1887 W

28 O

3 x 1,5 mm2

83902035

7,0 m2

0,5 x 14,0 m

2022 W

26 O

3 x 1,5 mm2

83902036

8,0 m2

0,5 x 16,0 m

2528 W

21 O

3 x 1,5 mm2

83902037

11,0 m2

0,5 x 22,0 m

3240 W

16 O

3 x 2,5 mm2

83902038

12,0 m2

0,5 x 24,0 m

3770 W

14 O

3 x 2,5 mm2

83902039

1,4 m2

0,75 x 1,8 m

410 W

129 O

3 x 1,5 mm2

83902040

2,0 m2

0,75 x 2,6 m

637 W

83 O

3 x 1,5 mm2

83902041

4,1 m2

0,75 x 5,4 m

1227 W

43 O

3 x 1,5 mm2

83902042

5,0 m2

0,75 x 6,6 m

1445 W

36 O

3 x 1,5 mm2

83902043

6,9 m2

0,75 x 9,2 m

2080 W

25 O

3 x 1,5 mm2

83902044

8,0 m2

0,75 x 10,6 m

2285 W

23 O

3 x 1,5 mm2



Types: set DEVIsnowTM 300T - 230 V with cold lead 10 m

Item no.

Heated area

Dimensions (W x L)

Output @ 230V~

Resistance

Cold lead

83902045

11 m2

0,75 x 14,6 m

3300 W

16 O

3 x 2,5 mm2

83902046

12,0 m2

0,75 x 16,0 m

3824 W

14 O

3 x 2,5 mm2

83902047

3,0 m2

1,00 x 3,0 m

750 W

71 O

3 x 1,5 mm2

83902048

6,2 m2

1,00 x 6,2 m

1907 W

28 O

3 x 1,5 mm2

83902049

12,0 m2

1,00 x 12,0 m

3874 W

14 O

3 x 2,5 mm2



Types: DEVIsnowTM 300T - 400 V with cold lead 10 m



Item no.

Heated area

Dimensions (W x L)

Output @ 400V~

Resistance

Cold lead

83902020

1,70 m2

0,5 x 3,4 m

520 W

308 O

3 x 1,5 mm2

83902023

3,50 m2

0,5 x 7,0 m

1050 W

152 O

3 x 1,5 mm2

83902026

5,90 m2

0,5 x 11,8 m

1760 W

91 O

3 x 1,5 mm2

83902029

7,90 m2

0,5 x 15,8 m

2285 W

70 O

3 x 1,5 mm2

83902050

2,40 m2

0,75 x 3,2 m

700 W

229 O

3 x 1,5 mm2

83902053

3,60 m2

0,75 x 4,8 m

1050 W

152 O

3 x 1,5 mm2

83902056

6,00 m2

0,75 x 8,0 m

1750 W

91 O

3 x 1,5 mm2

83902059

8,25 m2

0,75 x 11,0 m

2630 W

61 O

3 x 1,5 mm2

83902062

9,75 m2

0,75 x 13,0 m

2890 W

55 O

3 x 1,5 mm2

83902065

12,00 m2

0,75 x 16,0 m

3625 W

44 O

3 x 1,5 mm2

83902068

14,55 m2

0,75 x 19,4 m

4270 W

37 O

3 x 1,5 mm2

83902071

19,05 m2

0,75 x 25,4 m

5750 W

28 O

3 x 2,5 mm2

83902073

21,15 m2

0,75 x 28,2 m

6300 W

25 O

3 x 2,5 mm2

83902080

6,0 m2

1,00 x 6,0 m

1750 W

90 O

3 x 1,5 mm2

83902083

12,0 m2

1,00 x 12,0 m

3675 W

44 O

3 x 1,5 mm2

83902086

14,8 m2

1,00 x 14,8 m

4250 W

38 O

3 x 1,5 mm2

83902089

19,0 m2

1,00 x 19,0 m

5840 W

27 O

3 x 2,5 mm2



Types: DEVIsnowTM 300T - 400 V with cold lead 30 m



Item no.

Heated area

Dimensions (W x L)

Output @ 400V~

Resistance

Cold lead

140F0618

1,70 m2

0,5 x 3,4 m

520 W

308 O

3 x 1,5 mm2

140F0619

3,50 m2

0,5 x 7,0 m

1050 W

152 O

3 x 1,5 mm2

140F0620

5,90 m2

0,5 x 11,8 m

1760 W

91 O

3 x 1,5 mm2

140F0621

7,90 m2

0,5 x 15,8 m

2285 W

70 O

3 x 1,5 mm2

140F0622

2,40 m2

0,75 x 3,2 m

700 W

229 O

3 x 1,5 mm2

140F0623

3,60 m2

0,75 x 4,8 m

1050 W

152 O

3 x 1,5 mm2

140F0624

6,00 m2

0,75 x 8,0 m

1750 W

91 O

3 x 1,5 mm2

140F0625

8,25 m2

0,75 x 11,0 m

2630 W

61 O

3 x 1,5 mm2

140F0626

9,75 m2

0,75 x 13,0 m

2890 W

55 O

3 x 1,5 mm2

140F0627

12,00 m2

0,75 x 16,0 m

3625 W

44 O

3 x 1,5 mm2

140F0628

14,55 m2

0,75 x 19,4 m

4270 W

37 O

3 x 1,5 mm2

140F0629

19,05 m2

0,75 x 25,4 m

5750 W

28 O

3 x 2,5 mm2

140F0630

21,15 m2

0,75 x 28,2 m

6300 W

25 O

3 x 2,5 mm2

140F0631

6,0 m2

1,00 x 6,0 m

1750 W

90 O

3 x 1,5 mm2

140F0632

12,0 m2

1,00 x 12,0 m

3675 W

44 O

3 x 1,5 mm2

140F0633

14,8 m2

1,00 x 14,8 m

4250 W

38 O

3 x 1,5 mm2

140F0634

19,0 m2

1,00 x 19,0 m

5840 W

27 O

3 x 2,5 mm2
