DEVIreg™ 530/531/532

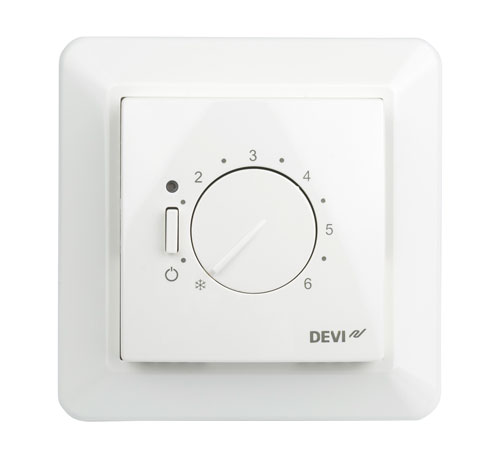

DEVIreg™ 530/531/532 is a line of simple electronic thermostats with a 2-pole switch and for flush-mounted fixing. The thermostats are used to control indoor floor heating systems. DEVIreg™ 530 is a 15 Amps thermostat with a wire (floor) sensor, used to control Comfort Floor Heating systems. The thermostat has a dial for adjusting the temperature setting with a numeric scale from to 6 (meaning from 5 °C to 45 °C and each step corresponds to approx. 8 °C).
DEVIreg™ 531 is a 15 Amps thermostat with a built-in air (room) sensor, used to control Direct Floor Heating systems. It has a dial for adjusting the temperature setting with a degree scale from to 35 °C (meaning from 5 °C to 35 °C). DEVIreg™ 532 is a 15 Amps thermostat with a built-in air (room) sensor to control the room temperature and an additional floor (wire) sensor to limit the maximum floor temperature. The thermostat is used to control Direct Heating via Floor systems with limitation of maximum floor temperature in wooden floors and other heat sensitive floors. It has a dial for adjusting the room temperature, with a degree scale from to 35 °C (meaning from 5 °C to 35 °C). Adjusting of the maximum floor temperature is provided by potentiometer placed under front cover (default 35 °C)
Benefits
- 2-pole safety breaker
- Low standby consumption
- Sensor failure monitoring
- LED indication for fault
- Frost protection
Specification
|
Operation voltage |
220 - 240 V, 50/60 Hz |
|
|
Standby power consumption |
Max. 0,25 W |
|
|
Resistive load: DEVIregTM 530/ 531/532 |
Max 15 A (3450 W) @ 230 V |
|
|
Inductive load |
Max. 1 A, cos φ = 0,3 |
|
|
Hysteresis |
± 0,4 °C |
|
|
Sensing unit |
NTC 15 kOhm at 25 °C |
|
|
Ambient temperature |
-10 °C to +30 °C |
|
|
Frost protection |
5 °C - |
|
|
Cable specification max |
1 x 4 mm2 or 2 x 2,5 mm2 |
|
|
Ball pressure test temperature |
75 °C |
|
|
Pollution degree |
2 (domestic use) |
|
|
Controller type |
1 C |
|
|
Storage temperature |
-20 °C to +65 °C |
|
|
IP class |
IP 31 |
|
|
Protection class |
Class II - |
|
|
Dimensions (H/W/D) |
85 x 85 x 36 mm |
|
|
Weight |
90 g |
|
Warranty scope
Compliance
Standard compliance:• EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat)
Product variants
Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents
Table
|
Item no. |
Product Name |
Frame |
Temp. range |
Sensor type |
Marking |
|---|---|---|---|---|---|
|
DEVIregTM 530 |
ELKO |
5-45 °C |
Wire sensor, 3 m, NTC 15 kOhm at 25 °C |
D530 |
|
|
DEVIregTM 530 |
ELJO |
5-45 °C |
Wire sensor, 3 m, NTC 15 kOhm at 25 °C |
D530 |
|
|
DEVIregTM 530 |
JUSSI |
5-45 °C |
Wire sensor, 3 m, NTC 15 kOhm at 25 °C |
D530 |
|
|
DEVIregTM 531 |
ELKO |
5-35 °C |
Built-in room sensor |
D531 |
|
|
DEVIregTM 531 |
JUSSI |
5-35 °C |
Built-in room sensor |
D531 |
|
|
DEVIregTM 532 |
ELKO |
5-35 °C room temperature; |
Built-in room sensor and wire sensor, |
D532 |
|
|
DEVIregTM 532 |
JUSSI |
5-35 °C room temperature; |
Built-in room sensor and wire sensor, |
D532 |
