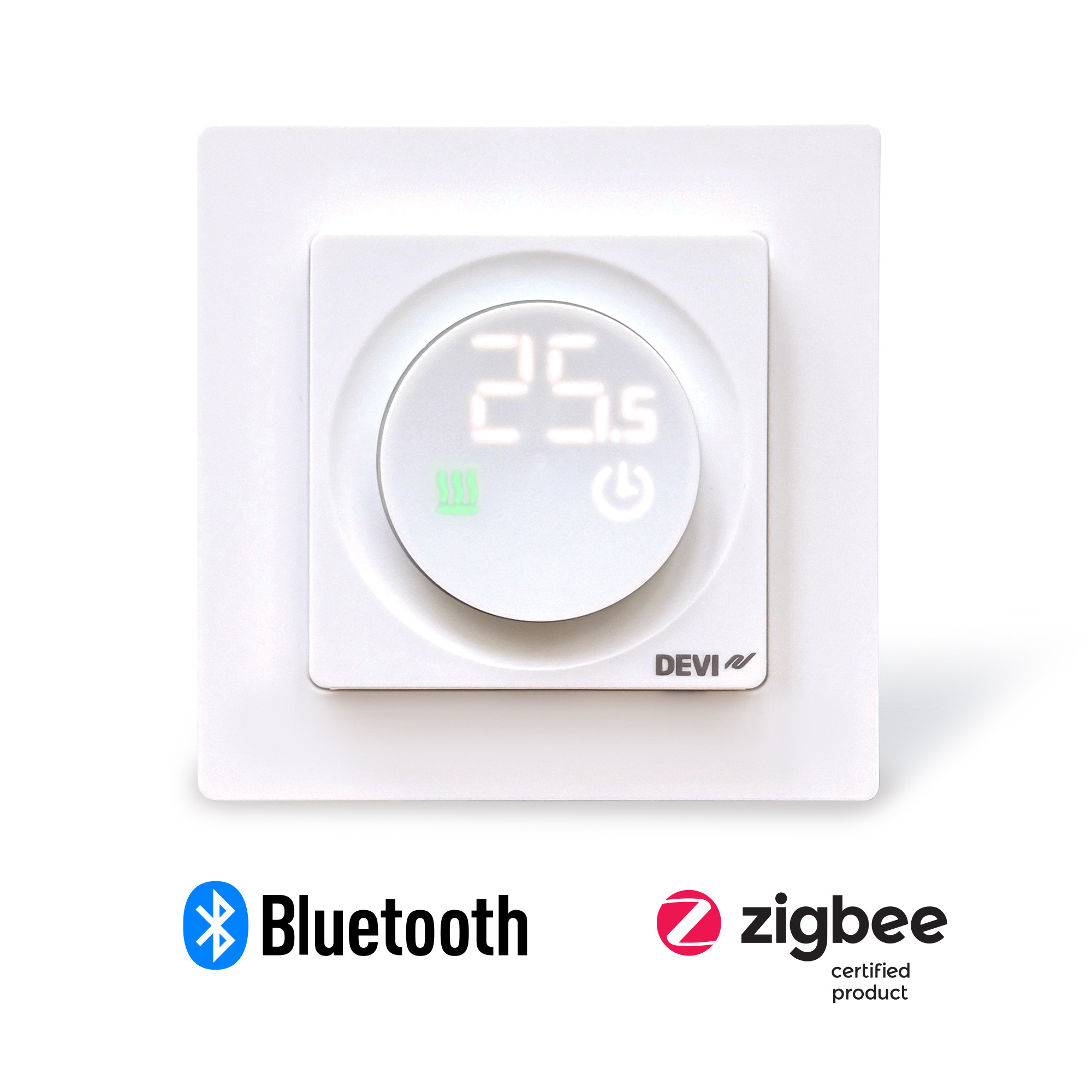

DEVIreg™ Display Connect

Smart Underfloor Heating Thermostat

DEVIreg™ Display Connect is a smart underfloor heating thermostat designed for precise control of electric floor heating systems. Combining modern connectivity with intuitive operation, it offers both Bluetooth® and Zigbee connectivity options, enabling flexible temperature management based on room temperature, floor temperature, or a combination of both.
Designed for fixed installations, the thermostat features a unique two-part construction that allows compatibility with a wide range of wall frames, making it an adaptable solution for residential and commercial projects. The integrated dial and display provide simple, user-friendly control, while the guided setup wizard in the Bluetooth app helps streamline commissioning and daily operation.

The thermostat includes programmable scheduling functions and energy management features designed to support efficient heating control. Its optimum start (pre-heating) function automatically calculates when heating should begin to help achieve the desired temperature at the scheduled time. This functionality can contribute to more efficient heating operation depending on building characteristics, installation conditions, and user settings.

Complying with Ecodesign Lot 20 requirements, DEVIreg™ Display Connect supports modern building control strategies while providing installers, specifiers, and end users with reliable temperature management for electric underfloor heating applications. The thermostat is compatible with a wide range of floor sensors, offering flexibility for new installations and renovation projects.

  • Eco design compliant Lot 20
  • Works out of box
  • Bluetooth and Zigbee thermostat
  • In app setup wizard
  • Fits extensive frame selection
  • Compatible with 7 sensors types
  • Sensor failure monitoring
  • Adaptive PWM control
  • Pre Heating
  • Multilanguage app
  • Shine through display
  • Quick exchange system
  • Multiple control modes
  • Tested best in class design

Specification

Nominal voltage 220 V- 240V~ 50/60 Hz
Standby power consumption, max 0,2 W
Relay:
Resistive load
Inductive load

16A / 3680W @ 230V
Cos Φ = 0.3 max. 1A
Compatible sensors NTC 15 kΩ @ 25 °C, 3 m. (default),
NTC 2 kΩ @ 25 °C
NTC 6.8 kΩ @ 25 °C,
NTC 10 kΩ @ 25 °C,
NTC 12 kΩ @ 25 °C,
NTC 33 kΩ @ 25 °C,
NTC 47 kΩ @ 25 °C
Regulation PWM - Pulse Width Modulation
Frost protection  4 °C - 14 °C (default 5 °C )
Temperature range 15 °C to 35 °C (room)
5 °C to 35 °C (45 °C with break out) (floor)
Cable specication for connectors terminals Max: 1 x 4 mm² or 2 x 2.5 mm²
Ball pressure test 75 °C
Pollution degree 2 (domestic use)
Software class  A
Controller type 1 B
Storage temperature and conditions -25 °C to 60 °C, 90% RH non-condensing
Operating temperatures and conditions 0 °C to 35 °C, 90% RH non-condensing
IP class  21
Protection class Class II -
Immunity against voltage surges  Over Voltage Category III
Transmission frequency (GHz) 2.400 – 2.4835 GHz
Transmission Power (dBm) <10 dBm
Color  RAL9016 Polar white
Battery type or Name Super Capacitor
Dimensions (H/W/D):  85 mm x 85 mm x 20-24 mm (in-wall depth: 22mm)
Weight, net 204 g
Battery back-up time, min 1 hour

Warranty scope

Standard compliance

Standard compliance
Ecodesign class:
• TW (f4)
Radio Equipment Directive
• LVD 60730-1, -2-7 and -2-9
• EMC EN 301 489 -1 and -17
• RF EN 300328

Apps



Use the DEVI Control
(Bluetooth App)
for local control.		 Use DEVI Connect
(Zigbee App) with your
DEVI Connect Gateway
for full control from anywhere.

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Item no Product name Type
140F1162 DEVIreg™ Display Connect Connectable Zigbee room thermostat with NTC 15 kΩ @ 25°C, 3 m sensor in box
Accessories
140F1091 Sensor 3 m, 15 kOhm, Santoprene Wire sensor, 2x0,75 mm², NTC 15 kOhm at 25 °C, Ø5x18 mm,
black Santoprene (TPV), IP 67
140F1098 Temperature Sensor 10 m NTC 15k Santoprene
19121445 Sensor cable 40 m, 15 kOhm, Santoprene
140F1166 DEVI Connect Gateway for Zigbee connectivity
