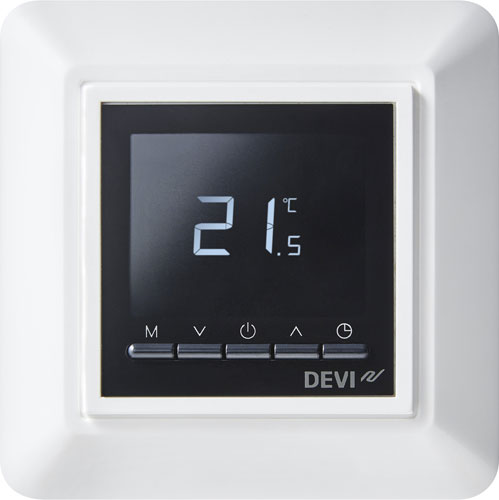

DEVIreg™ Opti
The DEVIreg™ Opti is an electronic thermostat with a programmable timer, designed to fulfill Eco design directive. The thermostat is primarily used for controlling electrical floor heating elements. The thermostat is designed for fixed installation only and has integrated frame. The DEVIreg™ Opti is fast to setup and easy to operate, using buttons placed below the screen. It has an open window detection function, and energy-saving regulation program.
Benefits
- Fulfilling the Eco design directive
- requirements
- Open window detection
- and indication
- PWM regulation function
- Weekly timer
- Low stand by consumption
- Always on, visible current room
- temperature
- Keeps user settings for up to 60 days
Specification
|
Operation voltage |
220 - 240 V, 50/60 Hz |
|
Standby power consumption |
< 0,5 W |
|
Resistive load |
13A / 2990W @ 230V |
|
Inductive load |
1A (Cos Φ = 0,3) |
|
Sensing unit |
NTC 15 kΩ @ 25 °C, 3 m. |
|
Regulation |
PWM - Pulse Width Modulation |
|
Ambient temperature |
0 °C to 35 °C |
|
Frost protection |
5 °C to 9 °C (default 5 °C) |
|
Temperature range |
5 °C to 35 °C (room) |
|
Storage temperature |
-25 °C to 60 °C |
|
Cable specification max. |
1 x 4 mm2 and 2 x 2,5 mm2 |
|
Ball pressure test temperature |
75 °C |
|
Pollution degree |
2 (domestic use) |
|
Controller type |
1 B |
|
Software class |
A |
|
IP class |
21 |
|
Protection class |
Class II - |
|
Dimensions (H/W/D) |
85 mm x 85 mm x 44 mm (in-wall depth: 24 mm) |
|
Weight |
138 g |
Warranty scope
Compliance
Standard compliance: EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat)
Product variants
Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents
Table
|
Item no |
Product name |
Type |
|---|---|---|
|
DEVIregTM Opti - Pure White |
RAL 9010 |
