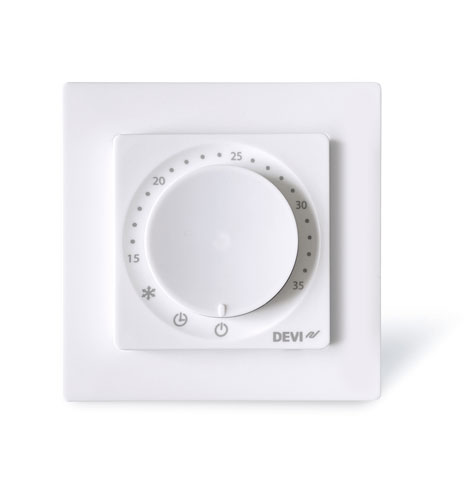

DEVIreg™ Room

DEVIreg™ Room is an intuitive programmable timer thermostat, for combined, room or floor temperature control, complying with Eco design Lot 20, used for controlling electrical floor heating elements, according to the room temperature. The thermostat is designed for fixed installation only. Due to the special designed 2-part construction it fits a wide range of frames. The thermostat features a dial for manual temperature setting, feature enabling and intuitive control. DEVIreg™ Room is fast and intuitive to setup using the in app wizard. It has an energy saving program - including an optimum start (pre-heat) control ensuring the desired temperature, with a wide range of floor sensors, at the correct time and thereby reducing the heating costs significantly.

DEVIreg™ Room

Benefits

  • Eco design compliant Lot 20
  • Works out of box
  • Bluetooth thermostat
  • In app setup wizard
  • Fits extensive frame selection
  • Compatible with 7 sensors types
  • Sensor failure monitoring
  • Adaptive PWM control
  • Pre Heating
  • Multilanguage app
  • Shine through indicators
  • Quick exchange system
  • Multiple control modes
  • Tested best in class design

Specification

Nominal voltage

220 V- 240V~ 50/60 Hz

Standby power consumption, max

0,2 W

Relay:
Resistive load
Inductive load

16A / 3680W @ 230V
Cos Φ = 0.3 max. 1A

Compatible sensors

NTC 15 kΩ @ 25 °C, 3 m. (default),
NTC 2 kΩ @ 25 °C
NTC 6.8 kΩ @ 25 °C,
NTC 10 kΩ @ 25 °C,
NTC 12 kΩ @ 25 °C,
NTC 33 kΩ @ 25 °C,
NTC 47 kΩ @ 25 °C

Regulation

PWM - Pulse Width Modulation

Frost protection

4 °C - 14 °C (default 5 °C )

Temperature range

15 °C to 35 °C (room)
5 °C to 35 °C (45 °C with break out) (floor)

Cable specification for connectors terminals

Max: 1 x 4 mm2 or 2 x 2.5 mm2

Ball pressure test

75 °C

Pollution degree

2 (domestic use)

Software class

A

Controller type

1 B

Storage temperature and conditions

-25 °C to 60 °C, 90% RH non-condensing

Operating temperatures and conditions

0 °C to 35 °C, 90% RH non-condensing

IP class

21

Protection class

Class II -

Immunity against voltage surges

Over Voltage Category III

Dimensions (H/W/D):

85 mm x 85 mm x 20-24 mm
(in-wall depth: 22mm)

Weight, net

204 g

Battery back-up time, min.

1 hour

Warranty scope

2 years

Compliance

Standard compliance:Radio Equipment Directive • LVD 60730-1, -2-7 and -2-9 • EMC EN 301 489 -1 and -17 • RF EN 300328

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

You can drag the table horizontally with your cursor to access further columns.

Item no

Product name

Type

140F1161

DEVIregTM Room

Ecodesign prog. room thermostat
with NTC 15 kΩ @ 25°C, 3 m sensor in box
